11344 ANGELICA 2 3M DX

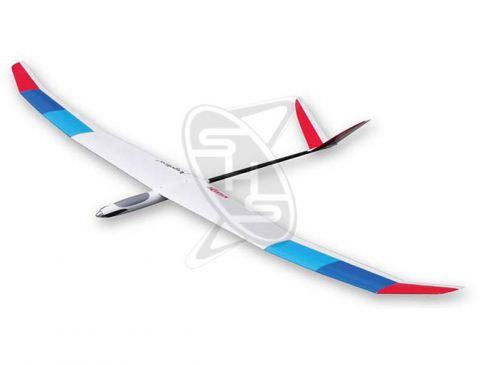

The 3m class electric motor glider "Angelica", which has participated in F5J competitions, has been significantly improved. The larger winglets and internal linkages have reduced air resistance and made it easier to catch thermals. In addition, wing covers are now standard equipment, and you don't have to worry about transporting it along with the three-piece main wing.
Aircraft Specification:
- Length: 1415mm
- Wing Span: 3070mm
- Wing Area: 55.8dm2
- Weight: 1500-1600g
- Motor: Tahmazo CR-352010d (48853)
- RC Radio: AL(2), EV-RD, FL(2), ESC
- 3-piece main wing after assembly
- Difficulty of flight: For advanced users
- Aircraft completion state: Film pasted
- Compatible power unit: Electric motor
The narrow 98-degree V-tail, three-piece main wing, high aspect ratio three-stage dihedral angle, and distinctive two-stage tapered elliptical wing with an original wing shape combine to achieve both running and lift, resulting in a weight that can be called light for this class.
The fuselage is made of a combination of a fiberglass pod and a carbon tapered pipe to ensure light weight and strength. The main wing is made of a balsa rib assembly with a balsa full plank with a film finish, achieving rigidity and light weight. In addition, the 34mm aluminum turbo spinner designed for this aircraft reduces resistance around the slim nose.
The Angelica 2 comes in three types: Deluxe, Basic, and PnP with pre-installed mechanisms.
This DX type is a great value set that includes a CR-352010d brushless motor (3-cell LiPo) with an original covered rotor system as the power unit, a 34mm aluminum turbo spinner, and a premium RL12x6 carbon folding propeller.
Main Set Contents:
- Balsa rib assembly
- Balsa full plank, main wing finished with film applied
- Balsa tail finished with film applied
- Fiberglass pod
- Carbon tapered pipe
- Plastic canopy
- Plywood/fiberglass control horn
- Carbon rod for linkage
- Push rod guide pipe
- Carbon wing
・Motor Tahmazo CR-352010d (48853)
・Folding propeller blade RL 12×6/8 carbon folding propeller blade (46956)
・Spinner hub set Tahmazo AT34/8C5.0ZM Spinner/hub set (48880)
・Japanese assembly instructions
・Color sticker
*This product is a film-pasted ARF finished model. To complete the model, you will need to attach the main wings and install the motor, radio receiver, servos, etc.
*Due to the material of the film, the covering film may sag or wrinkle. In such cases, you can apply heat with a model iron to shrink the film and remove it.
*The contents, design, color, etc. of the set may change without notice.
