ANAFI USA

Please email sales@singahobby.com for inquiries.

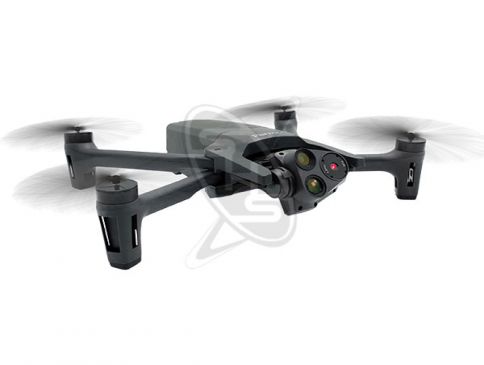

Drone Specifications

• Size folded: 252 x 104 x 84 mm
• Size unfolded: 282 x 373 x 82 mm
• Size unfolded on MIL version: 282 x 373 x 192 mm
• Mass: 500 g / 1.10 lb
• Maximum take-off mass (MTOM): 644 g / 1.42 lb.
• Maximum flight time: 32 minutes (30 minutes on MIL version)
• Maximum horizontal speed: 14.7 m/s
• Maximum ascent speed: 4 m/s (6 m/s on unlocked SE, GOV and MIL versions)
• Maximum descent speed: 3 m/s
• Maximum wind resistance: 14.7 m/s

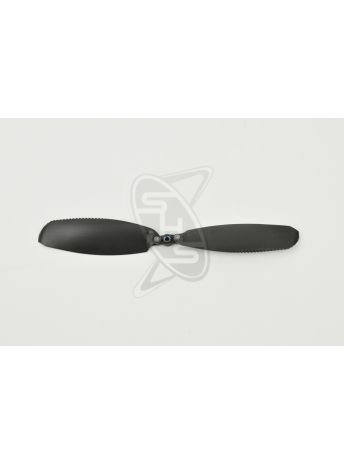

• Maximum propeller speed: 11,000 rpm
• Sound power level at 1 m (3 ft): 84 dB
• Service ceiling: 5,000 m above MSL (Mean Sea Level)
• User defined geofencing
• IP53 certified: dust and rain resistant
• Operating temperature: -33 °F (-36 °C) to +122 °F (+50 °C)
• No take-off temperature limitations

Security

• Zero data shared by default
• SD card AES-XTS encryption with a 512 bits key
• WPA2 AES CCMP encrypted network connections
• Digitally signed firmware

Sensors

• Satellite navigation: GPS, GLONASS & GALILEO
• Barometer and magnetometer
• Vertical camera and ultra-sonar
• 2 x 6-axis IMU
• 2 x 3-axis accelerometers
• 2 x 3-axis gyroscopes

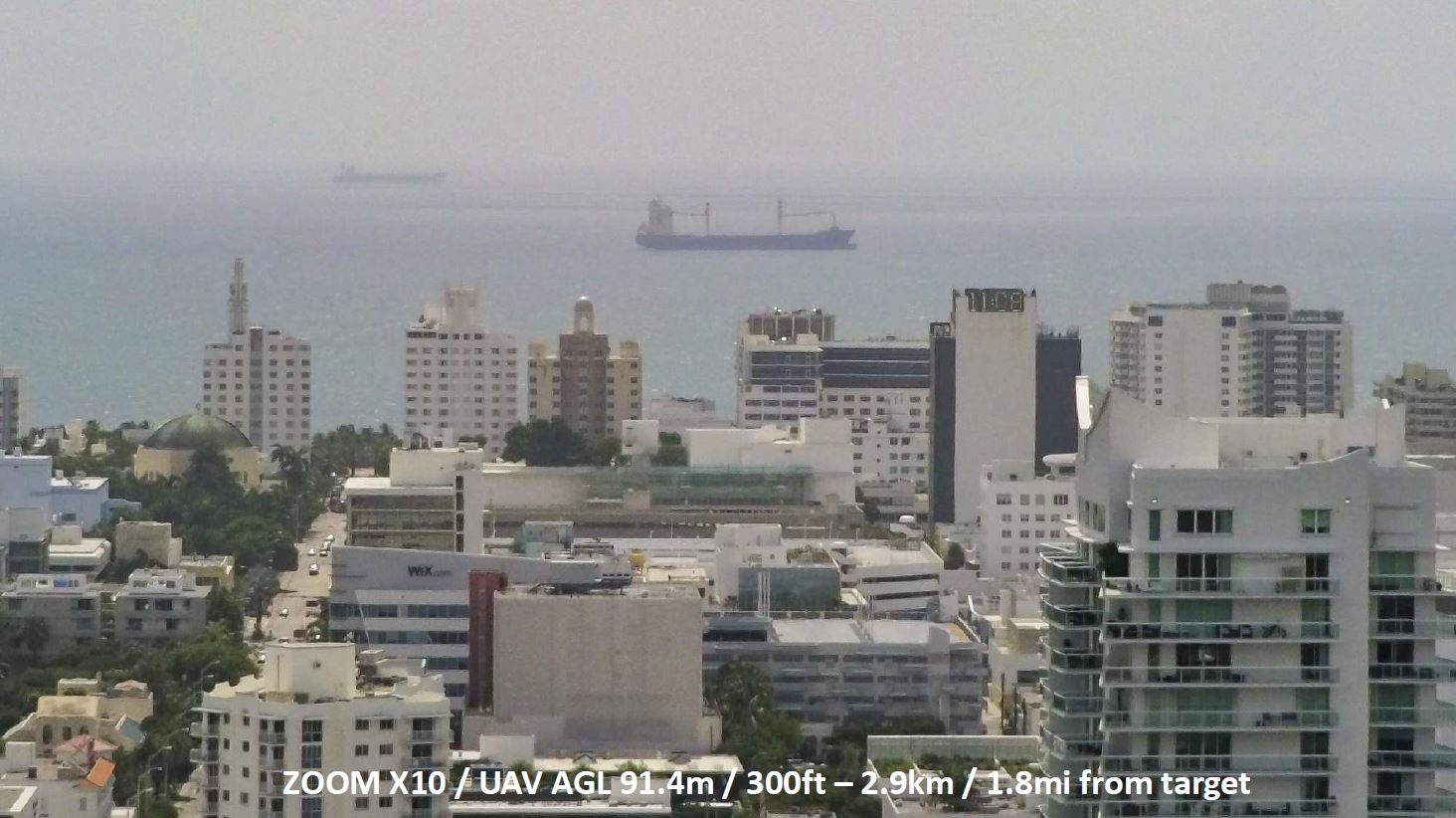

EO image chain

• 2 sensors: 1/2.4"
• Digital zoom: 32x
• Electronic shutter speed: 1 s to 1/10,000 s
• ISO range: 100 - 3200
• Video resolution: 4K/FHD/HD
• Video format: MP4 (H.264)
• Photo resolutions:
• Wide: 21 MP (84° FOV)
  Rectilinear: up to 16 MP (up to 75.5° FOV)
  Photo formats: JPEG, DNG (Digital NeGative RAW)

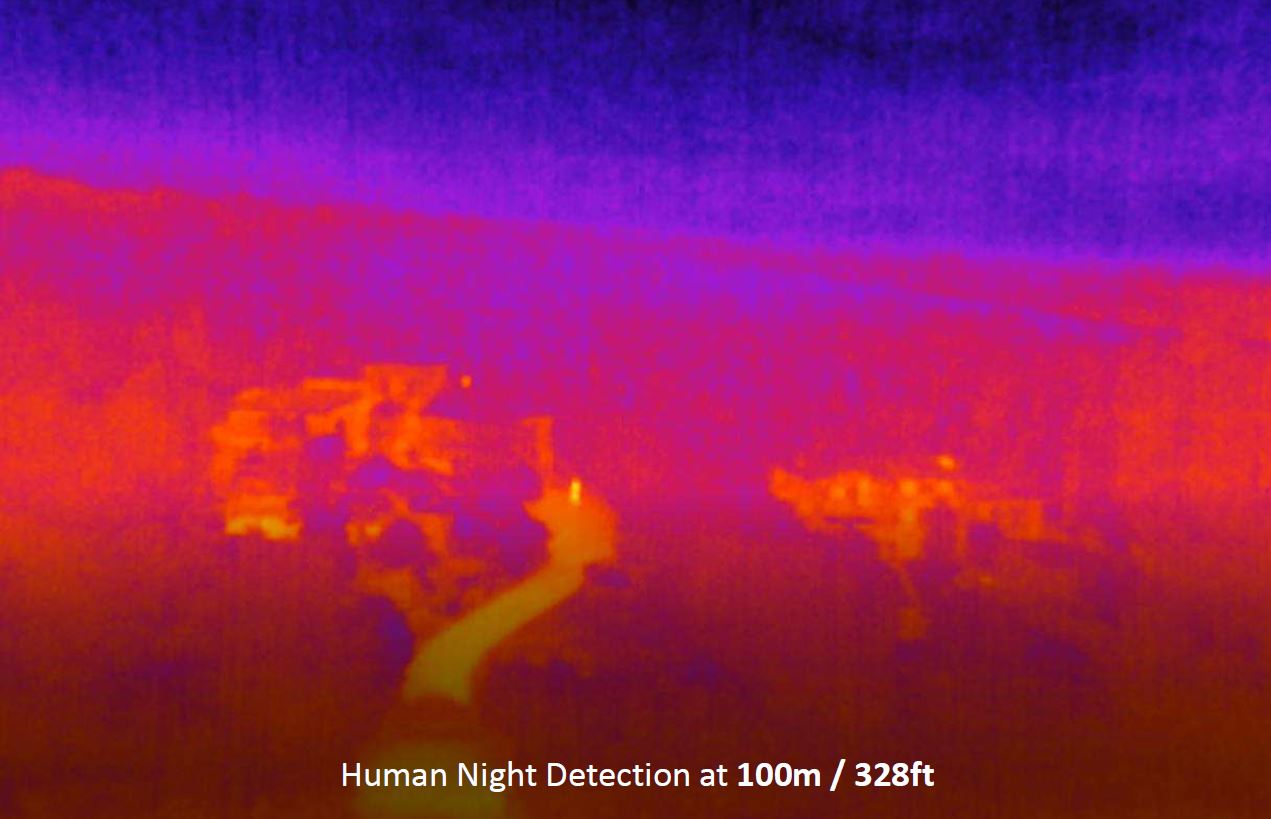

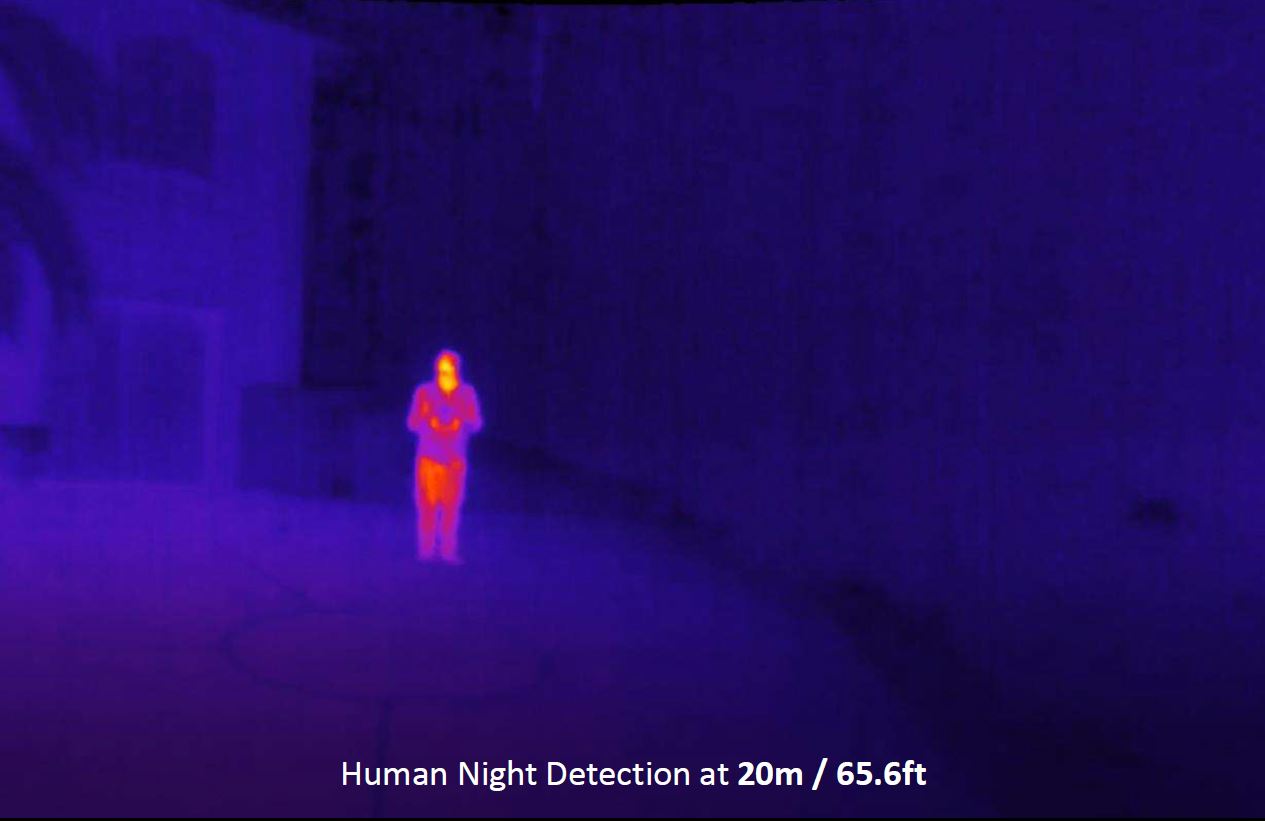

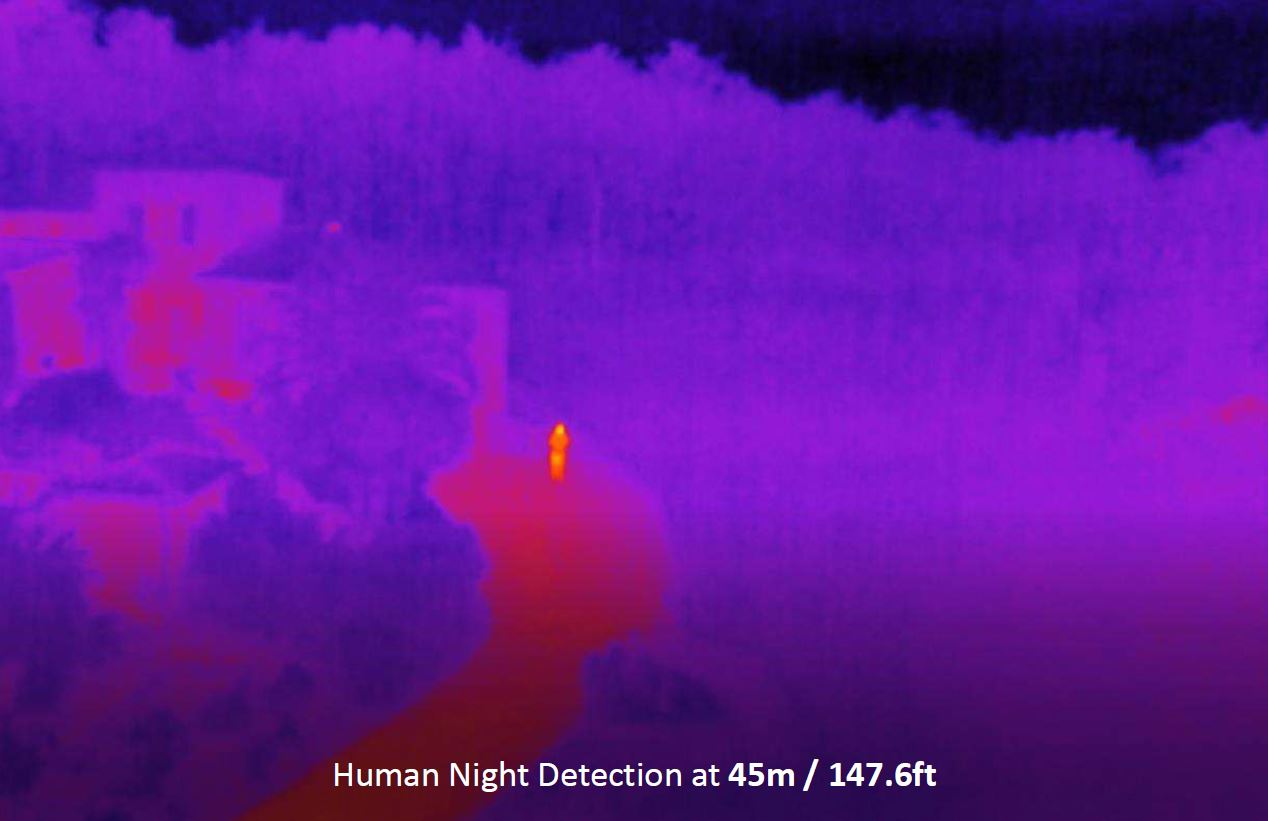

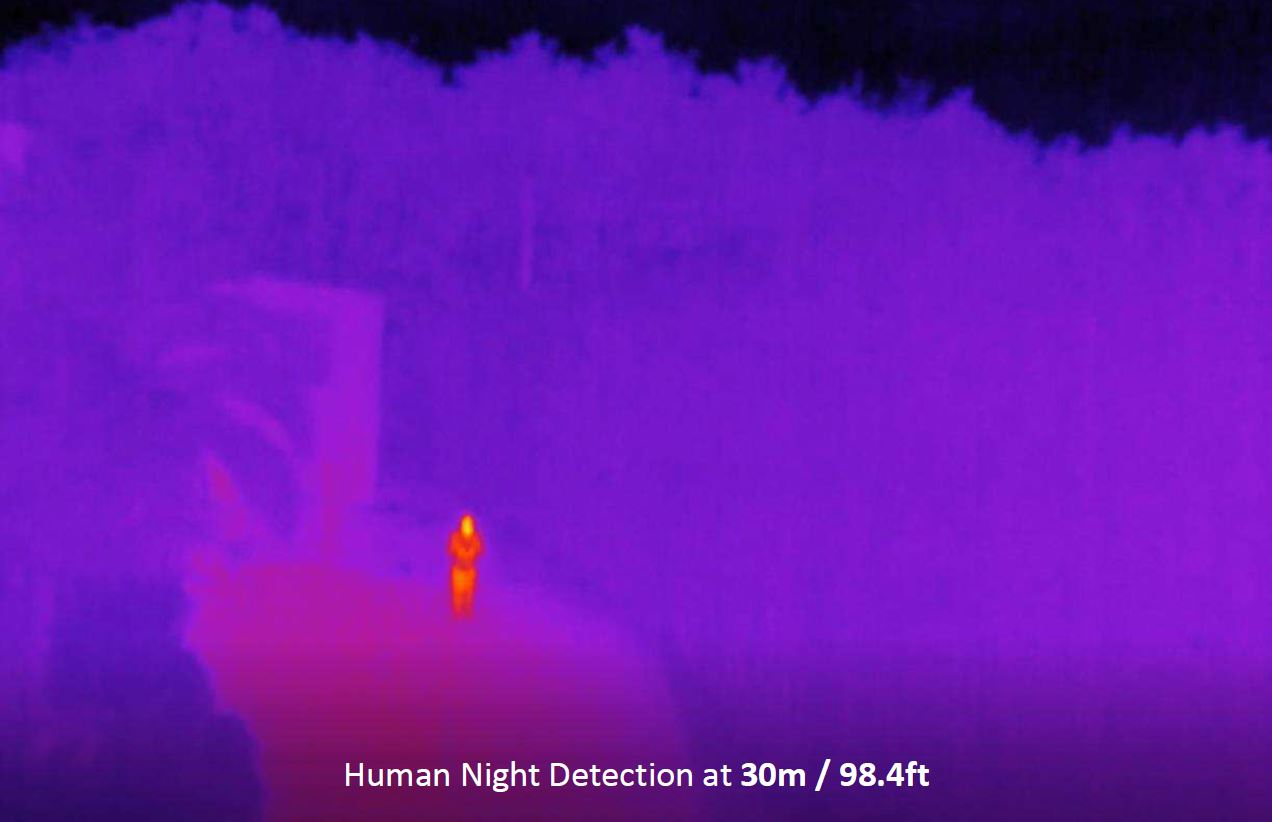

IR image chain

• Sensor: FLIR BOSON
• Digital zoom: 32x
• -40°C to +150°C temperature range
• Thermal sensitivity: ≤60 mK
• Measured IR wavelength range: 7.5 to 13 micrometers
• Video resolution: 1280 x 720 px
• Video format: MP4 (H.264)
• Framerate: 9 fps
• Photo resolution: 320 x 256 px
• Photo format: JPEG

Image stabilization

• 3-camera IR/EO stabilized gimbal:
• Hybrid: 3-axis
  Mechanical: 2-axis roll / pitch
  Electronics (EIS): 3-axis pitch / roll / yaw
  Controllable gimbal tilt range: -90° to +90°

Fast-charging smart battery

• Type: High density LiPo (3 x 4.4 V cells)
• Capacity: 3,400 mAh
• Battery life: 32 minutes
• Charging port: USB-C
• Charges in 2h with a USB-PD (Power Delivery) charger
• Mass: 195 g / 0.43 lb.
• Voltage: 11.55 V
• Maximum charging power: 30 W

Ecosystem

• Open Source SDK for Developers
• Extensive Partner Program
