AXI 2217/16 GOLD LINE Brushless Motor
SGD 108.10

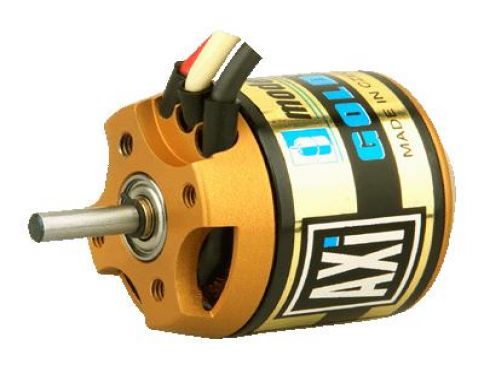

AXI 2217/16 GOLD LINE Brushless Motor
The newly designed small and powerful AXI 2217/16 GOLD LINE Brushless Motor with rotating case is suitable for 3D models up to 700g and for sailplanes up to 900g. The hardened steel 3.17mm shaft is supported by two ball bearings, and the overall robust construction ensures a long service life. The lightweight and excellent build of this motors enables high efficiency and high load possibility. Optional Radial Mounts can also be used with AXI 2217/xx series motors.
Specification| No. of cells | 2 - 3 Li-Poly |
| RPM/V | 1050 RMP/V |
| Max. efficiency | 83% |
| Max. efficiency current | 10 - 18 A (>75%) |
| No load current / 10 V | 0.4 A |
| Current capacity | 22 A/60 s |
| Internal Resistance | 120 mohm |
| Dimensions (diameter x length) | 27.7x35 mm |
| Shaft diameter | 3.17 mm |
| Weight with cables | 69.5 g |
| Weight: | 0.1200 |
