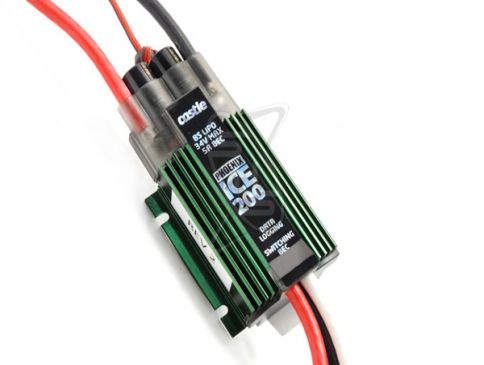

Castle Creations Phoenix Ice 200 ESC
SGD 407.20
Castle Creations Phoenix Ice brings the ability to run at input voltages of up to 8S (33.6V) and use the built in switching BEC to output up to 5 amps of servo power all the way up to the 8S max!
Castle Creations Phoenix Ice brings the ability to run at input voltages of up to 8S (33.6V) and use the built in switching BEC to output up to 5 amps of servo power all the way up to the 8S max!
Switching BEC
The Phoenix Ice switching BEC output is factory set to 5.0V. Users may use Castle Link to select their desired voltage between 5.0V and 7.0V, in 0.1V increments.
Data Logging
Ice brings another incredibly useful feature, extensive data logging capabilities. The controllers are able to measure and record many parameters at sample rates that you choose between 10 samples per second and 1 sample per second. Data points include:
- Battery Voltage
- Battery Ripple
- Battery Current
- Controller Temperature
- Controller Input Throttle
- Controller Motor Power Output
- Motor RPM
Specifications:
Length: 2.6" (66mm)
Length: 2.6" (66mm)
Width: 1.3" (33mm)
Height: 0.9" (22.9mm)
Weight (without wire): 4.56 Oz (129.3 g)
Max amps: 200 amps
Max Volts:
- 34 Volts
- 8s LiPo
- 22 cells NiCad/NiMh
| Weight: | 0.3100 |
