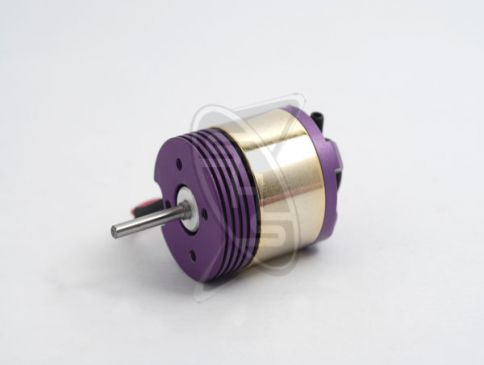

Cyclon Mini 2 Brushless Motor

SGD 101.80
Cyclon Mini 2 Brushless Motor

QTY:
Share this product
The Cyclon Mini 2 Brushless Motor is designed for powering airplanes, helicopters or powered glider. This motor can be used with 6 to 10 cells from 300 to 2000 mAh NiCd or 2S/3S Lipo batteries.

Characteristics of the motor using 4-15 degrees timing:
  • Current continuous: 12A, current: 18A max (30 sec)
  • Efficiancy: 81%, timing 4 degrees
  • Resistance windings: 0.115 Ohm total
  • KV = 1650 Revs/Min/Volt
  • lo = 0.8A (6V)
  • Dimensions: Diameter 25mm, Length 32mm
  • Weight: about 42g
Weight: 0.1000
