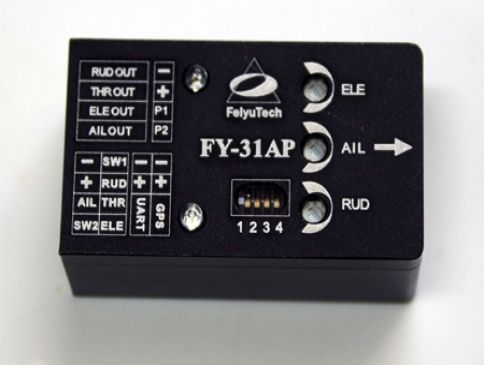

Feiyu-Tech FY-31AP Autopilot System (Basic Edition)

Feiyu-Tech FY-31AP is an inertial attitude measurement instrument used for automated stabilization of fixed wing model aircrafts and two axis camera gimbals. FY-31AP has an integrated three-axis gyro and three-axis accelerometer which controls the aircraft movement in three-dimensional space. By using your remote control, the unit can be turned on or off for the following functions:

Level flight – When stabilization is activated, the FY-31AP will automatically control the aircraft for smooth easy flying. For beginners in RC aircraft flying, this is advantages as it makes flight easier and increases the student pilot self-confidence. The system can be activated throughout the entire flight duration, from take off to landing.

Emergency Recovery - If you lose orientation release all control sticks, maintain throttle and switch ON the FY-31AP. The unit will automatically send the correct signals to balance of the aircraft and regain level flight, giving you time to get your orientation and fly the plane back to safety.

Autonomous flight – with the GPS Receiver connected, the FY-31AP will enable you to fly fully autonomous, with up to 8 waypoint settings using the FY Ground Control Station (GCS) software.

Ground Control Station – the FY GCS software will enable you to fly autonomously to up to 8 waypoints, display in-flight telemetry data, and record that flight for replay and analysis (this requires the optional Data Radio hardware).

Return to Home – You can set autonomous return to home via a 3 way switch or through your failsafe setting, enabling you plane returning to home should it lose your transmitter signal. Upon reaching the home point it will automatically engage auto circling, while it waits for your further instructions.

Automated circling - by activating this function, the aircraft will automatically circle the selected area at a fixed altitude. You can set the circling radius.

First Person View - for long-distance RC flight via video transmitter, the FY-31AP will maintain the balance of your aircraft. You only need to control the heading of your aircraft and enjoy the view.

Firmware upgrade – The FY-31AP firmware is upgradable by connecting to your computer via a USB TTL cable. As Feiyu Tech continuously improves the FY31AP system, firmware upgrades will be released periodically.

GPS Home Lock, Barometric Altitude and 8 Waypoint
