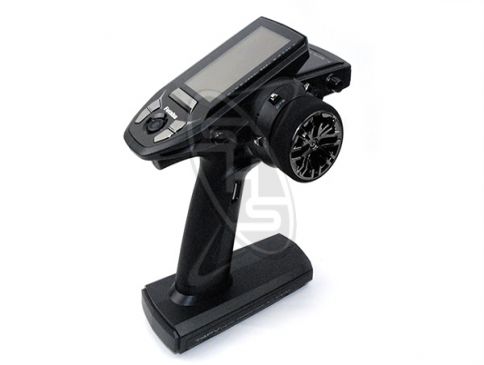

Futaba 4PV-2.4GHz with R314SB x 2

SGD 415.89

With adjustable throttle position, throttle tension, steering tension and 5-optional accessories, the Futaba 4PV-2.4GHz offers customizable ergonomics to make the radio uniquely yours.

It comes with 2 receivers

QTY:
Share this product

The Futaba 4PV-2.4HGz provides live telemetry data for your vehicles temperature, RPM, receiver and external voltage levels. It features audible alerts via audio jack allowing you to focus on driving while staying in the know.

With adjustable throttle position, throttle tension, steering tension and 5-optional accessories, the 4PV offers customizable ergonomics to make the radio uniquely yours.

The 4PV is compatible with two T-FHSS receivers and six S-FHSS receivers and can be updated thru the CIU-2 and CIU-3 interface, ensuring your 4PV is always updated with Futaba's latest technological innovations.

To get the most out of your vehicle and 4PV, you can use the included R314SB T-FHSS receiver. This version comes with 2 receivers, R314SB.

4PV FEATURES

  • T-FHSS and S-FHSS protocols
  • Large backlit LCD screen
  • Telemetry functions with logging capabilities and audible alerts
  • Six digital trims
  • 40-model memory
  • 10-character model naming
  • S.Bus/S.Bus2 servo programming
  • Direct Model Select
  • Model Copy/Model Clear
  • Alarm tone adjustments
  • Fail Safe
  • Dial trim step select
  • Firmware updatable via CIU-2 or CIU-3
  • Compatible with 2S LiFe batteries, NiMHs, dry cells and other battery options

SERVO ADJUSTMENTS

  • Digital steering trim
  • Digital steering trim rate
  • Steering reverse
  • Steering dual rates
  • Steering EPA (End Point Adjustments)
  • Steering expo
  • Steering sub trim
  • Digital throttle trim rate
  • Throttle reverse
  • Throttle EPA (End Point Adjustments)
  • Throttle ATL
  • Mechanical ATL
  • Throttle expo
  • Throttle sub trim
  • ABS
  • Idle-up
  • Throttle acceleration
  • Throttle preset (hold)
  • Throttle servo speed

MIXING FUNCTIONS

  • Programmable mixing
  • 4WS mixing
  • Brake mixing
  • Gyro mixing
  • Steering mixing
  • Throttle mixing

BASIC FUNCTIONS

  • Backlit 39x74mm dot matrix LCD screen with contrast
  • Audible alarm
  • Adjustable steering tension
  • Angled antenna
  • Adjustable steering position (angle/APA)
  • Adjustable throttle position (forward/back)
  • Telemetry data speech via earphone
  • Servo link (programming S.Bus servos from the transmitter)
  • One digital dial (programmable)
  • One push switch (programmable)
  • One push lock switch (programmable)
  • Four push switches and one jog dial for navigation
  • Automatic power off
  • S.Bus servo setting
  • Display switch (allows adjustments in the settings without turning on the RF signal)
  • Two types of grip pads

CHANNEL 3 & 4 PROGRAMMABLE FUNCTIONS

    • CH3 servo reverse
    • CH3 step
    • CH3 EPA (End Point Adjustments)
    • CH3 sub trim
    • CH3 brake
    • CH3 ABS
  • CH4 servo reverse
  • CH4 EPA (End Point Adjustments)
  • CH4 sub trim
  • CH4 brake
  • CH4 ABS

 TIME FUNCTIONS

  • Up timer
  • Down timer
  • Lap timer
  • Lap memory (up to 100 laps & total)

IN THE BOX

1. Futaba 4PV-2.4GHz x 1
2. R314SB x 2pc
3. Instruction Manual
4. Battery Box

Weight: 1.0000
