FUTABA BLS671SVi HV S.Bus2 Programmable 1/12

BLS671SVi HV S.Bus2 Programmable 1/12

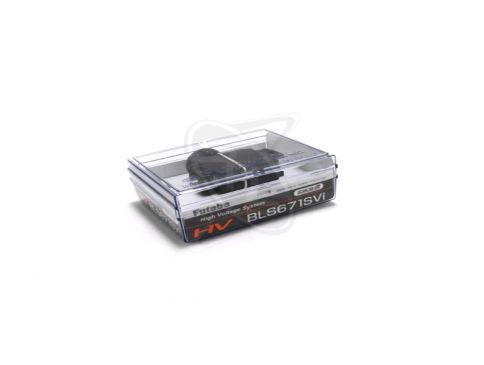

This is the Futaba BLS671SVi High Voltage SBus 2 Mini Servo.

Features:

- Designed for 1/12 scale electric powered cars that require high torque and high speed
- Coreless motor

In the Box:

- Futaba BLS671SVi High Voltage SBus 2 Mini Servo, 0.81" (20.5mm)
- round Horn, 1.5" (39mm) 4-point Horn, 1.2" (32mm) 6-point Horn
- four each Grommets, Eyelets, and Screws
- SVi Connector and Instructions

Specifications:

6.6V; 7.4V
Speed: 0.11 sec/60°; 0.10 sec/60°
Torque: 7.4 kg-cm; 8.3 kg-cm
Size: 33 x 15 x 27.1mm
Weight: 28.0g
Rated Voltage: DC6.0V - 7.4V
Operating Voltage: DC4.0 - 8.4V

SBus Programmable Defaults
Dead Band Degree: 0.30
Damper Factor: 80
Stretcher Gain: 2
Boost: 25
Neutral Offset Degree: 0
Travel Adjust Percentage: 100%
Reverse (Normal/Reverse): Nor
Stop Mode (Free/Hold): Hold
Buzzer (On/Off): Off
Smoother (On/Off): On
Boost (On/Off): Off
Soft Start: 3.0
