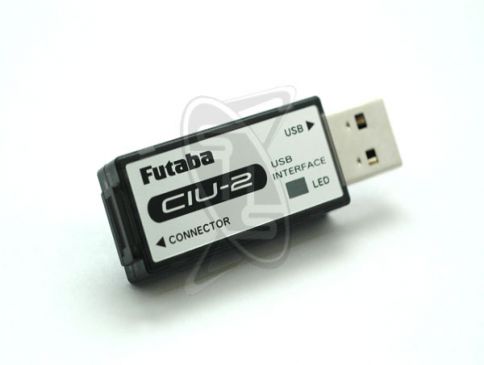

Futaba CIU-2 USB Interface

SGD 57.94

The Futaba CIU-2 is a simple hook-up to sophisticated programming. Ideal for use with the GY520 gyro and MC401CR, MC601 or MC850 electronic speed controls. Includes USB connector and a 19.7" extension. Requires PC with Windows® Vista, XP, or 2000 operating system and USB port. By using the CIU-2 USB serial interface to connect the S.BUS servo to the PC, the operating characteristics can be changed by PC-Link program (downloadable from Futaba website) installed on a PC.

QTY:
Share this product
The Futaba CIU-2 is a simple hook-up to sophisticated programming. Ideal for use with the GY520 gyro and MC401CR, MC601 or MC850 electronic speed controls. Includes USB connector and a 19.7" extension. Requires PC with Windows® Vista, XP, or 2000 operating system and USB port.

By using the CIU-2 USB serial interface to connect the S.BUS servo to the PC, the operating characteristics can be changed by PC-Link program (downloadable from Futaba website) installed on a PC.

Specifications:

Interface:
USB Connector:
Operating voltage:
Current drain (At connection, idle):
Operating environment:
Dimensions:
Weight:
Applicable OS:

USB Rev 1.1 compliant
USB Series A connector
5.0V ±0.2V (USB bus power)
12.3 ±2.0mA
Temperature - 10 ~ 50degrees Celsius
18.2X56.5X9.0mm
7.5g
Windows Vista/XP/2000



Click Here and let us show you how the Futaba S.Bus System works.
