Futaba S9170SV S.Bus2 Programmable High Voltage Servo
SGD 105.14

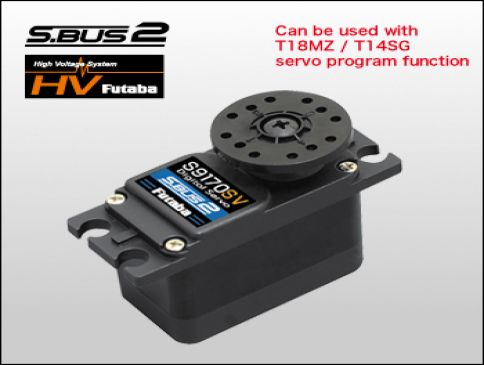

The Futaba S9170V is a S.Bus2 system compatible high torque and high voltage servo. Its low profile design makes it ideal as wing servos in airplanes. This programmable servo has built-in metal gear and dual ball bearing. This servo can be used with Futaba 18MZ/14SG servo program function.
The Futaba S9170V is a S.Bus2 system compatible high torque and high voltage servo. Its low profile design makes it ideal as wing servos in airplanes. This programmable servo has built-in metal gear and dual ball bearing. This servo can be used with Futaba 18MZ/14SG servo program function.
Specifications:
- Speed: 0.13sec/60°(6.6V), 0.12sec/60°(7.4V)
- Torque: 6.0kgf·cm(6.6V), 6.8kgf·cm(7.4V)
- Dimensions 35.9 x 19.5 x 24.9mm
- Weight: 32g
- Power supply: 6.0 - 7.4V
About Futaba S.Bus2:
Different from conventional radio control systems the Futaba S.Bus System uses data communication to transmit control signals from a receiver to a servo, gyro, or other S.Bus compatible device. This data includes commands such as "move the channel 3 servo to 15 degrees, move the channel 5 servo to 30 degrees" to multiple devices. The S.Bus devices execute only those commands for their own set channel. For this reason, it can be used by connecting multiple servos to the same signal line.
With the S.Bus2 system, telemetry sensors can be used for Futaba telemetry capable transmitters and receivers. Data and alerts can be directly available on radios such as the Futaba 14SG and 18MZ.
Different from conventional radio control systems the Futaba S.Bus System uses data communication to transmit control signals from a receiver to a servo, gyro, or other S.Bus compatible device. This data includes commands such as "move the channel 3 servo to 15 degrees, move the channel 5 servo to 30 degrees" to multiple devices. The S.Bus devices execute only those commands for their own set channel. For this reason, it can be used by connecting multiple servos to the same signal line.
With the S.Bus2 system, telemetry sensors can be used for Futaba telemetry capable transmitters and receivers. Data and alerts can be directly available on radios such as the Futaba 14SG and 18MZ.
Futaba S9170SV S.Bus2 Programmable High Voltage Servo
