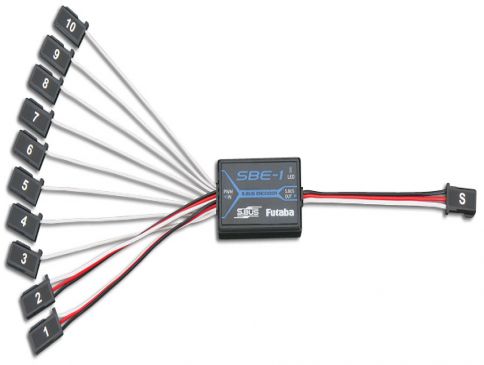

Futaba SBE-1 S.Bus PWM Adapter
SGD 78.52
The Futaba SBE-1 is a converter that is used when using a CGY750 gyro or other exclusive S-BUS receiver device with a receiver for conventional system use. The signals (PWM) of a conventional system of up to 10 channels can be converted to S.BUS system signals.
The Futaba SBE-1 is a converter that is used when using a CGY750 gyro or other exclusive S-BUS receiver device with a receiver for conventional system use. The signals (PWM) of a conventional system of up to 10 channels can be converted to S.BUS system signals.
Specifications:
- PWM Input: Max 10 Channels
- Input Pulse Width: 805 - 2,235μS
- Input Frame Rate: 3 - 27.3mS
- Output Signal: S.Bus
- S.Bus Data Rate: 100kbps
- Output Frame Rate: Approx. 7mS
- Operating Voltage Range (Rated): 4.8 - 7.4V
- Dimensions: 23.5x33.5x9.5mm (excluding cable)
- Weight: 15g
- Operating Temperature Range: -10 - +45°C
- Storage Temperature Range: -20 - +60°C
