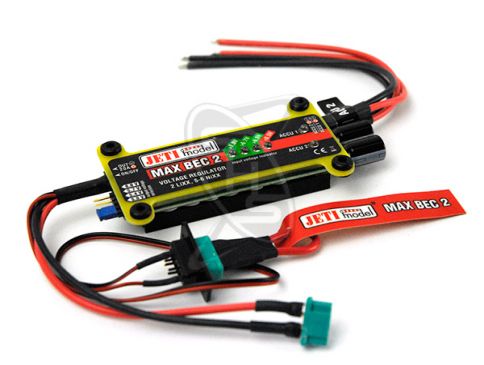

Jeti Max BEC 2

Jeti Max BEC 2 is designed to power the receiver and servos in the model. It is a linear voltage stabilizer with an adjustable output voltage. The output voltage is set using a jumper and in one of four positions: 5.0V, 5.4V, 5.7V or 6.0V. MAX BEC 2 can be powered using NiXX and Li–XX cells. MAX BEC also gives an indication of used capacity of the battery with four LED´s.

An integral part of the MAX BEC 2 is an electronic switch that uses a highly efficient type of MOSFET transistor. The main benefits of the MAX BEC 2 include a high voltage rating (to 12 cells NiXX) and low current in the off state (170 μA). The analog voltage stabilization does not contribute to radio interference.

Specifications

Weight: 85g

Dimensions: 100 x 29 x 16 mm

Sustained current: 12A

Peak current: 20A (max 30s)

Telemetry: No

Operational temperature: -10°C to 130°C

Recommended input voltage: 5.5V to 8.4V

Output voltage: 5.0V / 5.4V / 5.7V / 6.0V

Idle current: 170µA

Max. power loss: 20W

Number of battery inputs: 2

Max. input voltage: 16V
