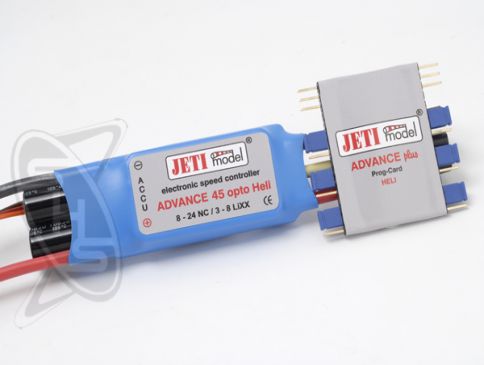

Jeti Model ADVANCE 45 Plus Heli ESC

Basic programming of Advance PLUS ESC

Choosing Brake ON or OFF and Hard or Soft timing - can be done without the Programming Card. Detailed programming of the Jeti Advance PLUS is done by using this tiny 43 x 40 mm Programming Card that is only 3 mm thick. Carry it in your pocket or your field box -- it has ALL the advanced programming functions in it. Just move the jumper connectors to the value you select. With the Programming card you can program or select the following:

1.NiCad and NiMH or Lithium battery
2.Motor Cutoff Voltage
3.Hard or Soft Cutoff
4.Prop Brake On or Off
5.Timing: Low for normal motors, High for Outrunners
6.Throttle Response: Linear or Logarithmic

Features:

• Very smooth throttle response
• Superb operation with OUTRUNNER motors
• Automatic motor cutoff with automatic detection of the number and the type of battery cells
• Safety cutoff when using Lithium batteries that prevents accidental destruction of the Lithium battery due to over discharge
•High frequency brake with non linear hard or limited braking action
• Automatic self-calibrating when you turn on your transmitter
• Automatic motor cutoff when battery voltage is low
• 8 kHz switching rate
• These can be easily programmed to operate either normal brushless motors or to operate OUTRUNNER motors

Specifications:

Check out:

Jeti Model ADVANCE Plus Programming Card
