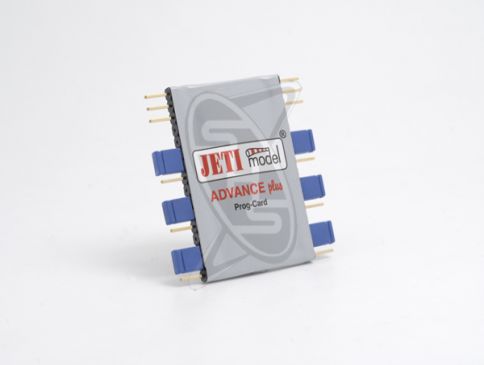

Jeti Model ADVANCE Plus Programming Card

Jeti Model ADVANCE Plus Programming Possibilities:

• Brake on - Brake is active
• Brake off - Non-active brake
• Timing low (soft timing) - For 2, 4 & 6 pole motors. This timing gives the maximum efficiency
• Timing high (hard timing) - Strongly recommended for outrunners
• Throttle curve linear - Half throttle is equal to 60% of maximum RPM
• Throttle curve logarithm - Half throttle is equal to 80% of maximum RPM
• ACCU NiXX - Power pack type NiCd or NiMH
• ACCU Li-XX - Power pack type Li-Pol or Li-Ion
• Cut off voltage high - Cut off is set to 0.9V per cell for NiXX, 3.0V per
cell for Li-xx
• Cut off voltage low - Cut off is set to 0.7V per cell for NiXX, 2.7V per
cell for Li-xx
• Cut off hard - Motor is fully turned off immediately after reaching cut off voltage
• Cut off slow down - Motor turns off slowly by power reduction
