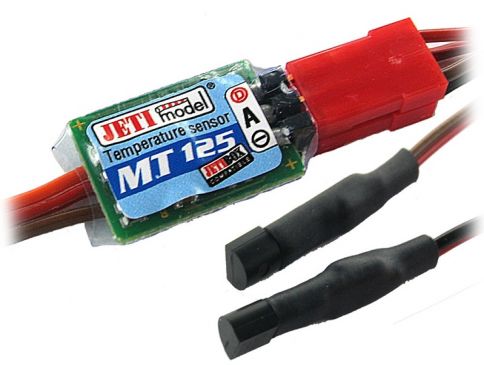

Jeti Model MT125 (Temperature Monitor)
SGD 62.90
The Jeti Model MT 125 Sensor measures temperature of your model's devices like motors, controllers, batteries and other accessories. These recorded data can be delivered real time to the JETIBOX when connected using the Jeti DUPLEX 2.4GHz system.
The Jeti Model MT 125 Sensor measures temperature of your model's devices like motors, controllers, batteries and other accessories. These recorded data can be delivered real time to the JETIBOX when connected using the Jeti DUPLEX 2.4GHz system. The MT 1250module can be configured to trigger alarm (at the transmitter) by activated the individual sensors when temperature limits exceeded.
Specifications:
| Dimensions: | 19 x 14 x 4 mm |
| Weight (without cables): | 10g (4g) |
| Number of Temprature Sensors: | 2 |
| Temperature Sensor Range: | - 55°C +125°C |
| Measuring Accuracy: | 0.5 °C |
| MT-Module Operation Temperature: | - 10°C to + 85° C |
| Supply Voltage: | 3.5 to 8.4V |
| MT-Module & Sensor intrinsic consumption: | 7 mA |
The innovative DUPLEX 2.4 GHz system by JETI Model for radio controlled models of all types working on the 2.4GHz band. Problems with interference and frequency control will be history, and operation on the 2.4GHz band will change your approach to radio control forever. In designing the DUPLEX system, Jeti Model's aim has always been to improve on what is offered by other radio control systems currently on the market. Jeti Model offer you very sophisticated equipment offering reliable – duplex – secure – digital transmission of information.
Main advantages of the JETI Model 2.4 GHz DUPLEX System:
- No crystals used – no frequency checks required
- You do not have to buy a new transmitter
- Easy and reliable binding of receivers to transmitters (you can use endless numbers of receivers with every transmitter)
- High interference rejection provides safe operation - even in an interference rich environment
- Digital data transmision ensures distortion free transfer of information to the model
- Maximum safety
- Can be used with all types of models (aircraft, boats, cars)
- Two way communication between receiver and transmitter
- Telemetric data transfer to the model operator in real time
- High sensitivity of receivers and high output of transmitters ensures visibility limit range
- Self-correcting coding of information
- The DUPLEX system can handle up to 16 input channels with the use of two receivers
- Two aerial receivers ensure continuous control of models in any position, and eliminate blind spots caused by signal reflection
- Quality plotting of transmission channels and antenna position at start up, providing a low probability of transmission on busy or interference rich channels
- Immediate response of the receiver output to changes in transmitter controls
- Transmitter modules are fitted with an alarm triggered by the receiver in dangerous situations (low receiver battery voltage, poor reception, etc.)
- The DUPLEX system provides simultaneous operation of more than one receiver on the same transmitter (listening-in)
- Real time data display and easy programing using the JetiBox
- Failsafe with adjustable time delay
- Receiver outputs can be changed to match any transmitter channel input
- All of the receivers allow the setting of mixers, servo reverse, ATV, servo slow for each output on the receiver, even with the simplest of transmitters
| Weight: | 0.0600 |
