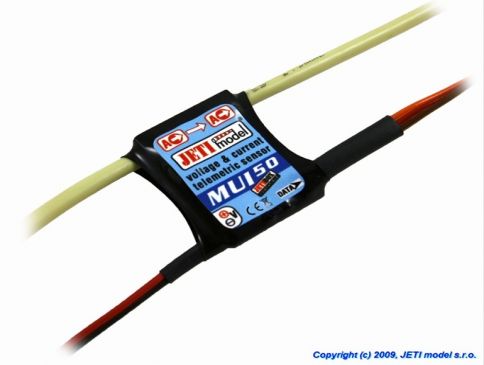

Jeti MUI 50 (Battery Monitor - 50A)
Jeti MUI 50 (Battery Monitor - 50A)
Specifications:
| Dimensions: | 27x19x11 |
| Weight with cables: | 19g |
| Tempertature Range min.: | -10 degrees celcius |
| Tempertature Range max.: | +85 degrees celcius |
| Supply Voltage min.: | 5V |
| Supply voltage max.: | 8.4V |
| Average Current | 32mA |
| Range of measured voltage min.: | 0V |
| Range of measured voltage max.: | 60V |
| Range of measured current min.: | 0A |
| Range of measured current max.: | 50A |
| Accuracy of voltage measurement: | 0.1% |
| Accuracy of current measurement: | 1% |
The innovative DUPLEX 2.4 GHz system by JETI Model for radio controlled models of all types working on the 2.4GHz band. Problems with interference and frequency control will be history, and operation on the 2.4GHz band will change your approach to radio control forever. In designing the DUPLEX system, Jeti Model's aim has always been to improve on what is offered by other radio control systems currently on the market. Jeti Model offer you very sophisticated equipment offering reliable – duplex – secure – digital transmission of information.
• No crystals used – no frequency checks required
• You do not have to buy a new transmitter
• Easy and reliable binding of receivers to transmitters (you can use endless numbers of receivers with every transmitter)
• High interference rejection provides safe operation - even in an interference rich environment
• Digital data transmision ensures distortion free transfer of information to the model
• Maximum safety
• Can be used with all types of models (aircraft, boats, cars)
• Two way communication between receiver and transmitter
• Telemetric data transfer to the model operator in real time
• High sensitivity of receivers and high output of transmitters ensures visibility limit range
• Self-correcting coding of information
• The DUPLEX system can handle up to 16 input channels with the use of two receivers
• Two aerial receivers ensure continuous control of models in any position, and eliminate blind spots caused by signal reflection
• Quality plotting of transmission channels and antenna position at start up, providing a low probability of transmission on busy or interference rich channels
• Immediate response of the receiver output to changes in transmitter controls
• Transmitter modules are fitted with an alarm triggered by the receiver in dangerous situations (low receiver battery voltage, poor reception, etc.)
• The DUPLEX system provides simultaneous operation of more than one receiver on the same transmitter (listening-in)
• Real time data display and easy programing using the JetiBox
• Failsafe with adjustable time delay
• Receiver outputs can be changed to match any transmitter channel input
• All of the receivers allow the setting of mixers, servo reverse, ATV, servo slow for each output on the receiver, even with the simplest of transmitters
| Weight: | 0.0600 |
