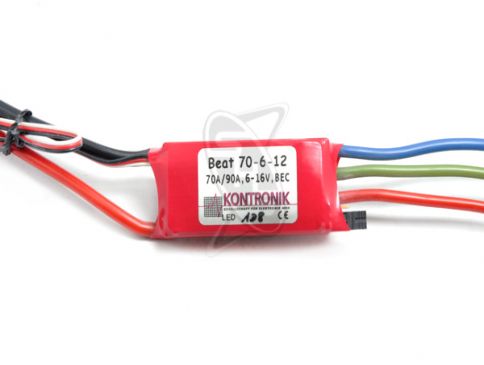

Kontronik Beat 70-6-12 ESC

SGD 337.20

Kontronik Beat 70-6-12 ESC

QTY:
Share this product
The Kontronik BEAT speed Controllers are designed for brushless motors. They work without sensors in the motor and have full part load capability. They are very sensitive and have a soft and yet very fast start up. The built-in RPM control optimizes the application with helicopters and the mode programming helps essentially to program all the various parameters. The Car Mode 2 allowed to drive back and forth.


Features:

• Sensorless, no sensor signals from the motor are required
• Mode programming
• Auto-Programming-Mode (APM)
• Glider-Mode
• Motor-Plane- / Boot-Mode
• Heli-Mode, active RPM control possible
• Competition-Mode (F5B / F5B 10 cells / F5D)
• Car-Mode 1: one direction, proportional brake
• Car-Mode 2: back and forth
• Reverse Motor Rotation
• EMF-brake with variable brake rate, can be disabled
• Automatic undervoltage cut off at 0.8 V/cell, adjustable, can be disabled, reducing power instead of cut off possible
• Unlimited part load capability
• Analysis of switching off reason (shown by LED)
• Adjusting monitored by LED or audible signal
• Smooth start up
• Very sensitive control characteristic
• Selfadjusting beat frequence (8-32kHz), based on the sensing and computing of the actual motor data
• Sensing of motor rotation direction
• Loose of one phase detection (connection off)
• Start up protection at power up, blocked motor protection, overtemperature protection
• Over current limitation
• 100% surface mount technology (very small and light)
• Digital microprocessor control, therefore no thermal drift
• Highly flexible, heat-resistant cables
• CE tested, Made in Germany

Specifications:

 70 A continuous current
 90 A for 15 sec
 Weight: 21g / 37 g without / with cables

 Dimensions:

 52 x 26 x 11 mm
Weight: 0.1200
