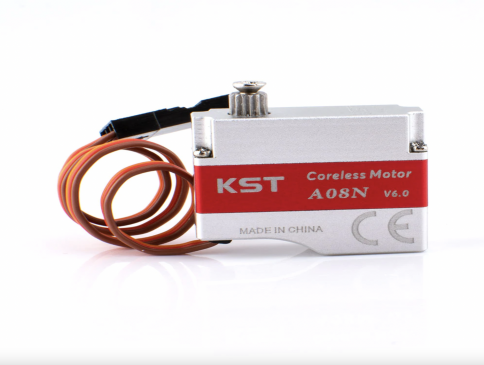

KST A08N V6 Wing Servo (1.4-2.8KG)

A08N V6.0 Coreless Metal Gear HV Servo Glider DLG

Specifications:

Working Frequency: 1520us/20KHz or 333Hz

Default Travel Angle: ±60° = 120° Total

Temperature Range: -10℃……+65℃

Soft Start: Yes

Programmable: Yes

Case Material: Aluminum Alloy

Motor Type: Coreless DC Motor

Gear Set Material: Hardened Steel

Position Sensor: Potentiometer

Case Dimensions: 23.5*8.0*19.0±0.2mm

Weight: 7g±10%

Rated Voltage: DC7.4V

Voltage Range: DC3.8V-8.4V

Programing box/USB link compatible

Features

Compact and lightweight design

Excellent torque and speed

Designed for high-performance RC Gliders

Excellent heat dissipation

Torque

14N.cm@3.8V - 1.4kg.cm@3.8V

22N.cm@6.0V - 2.2kg.cm@6.0V

28N.cm@7.4V - 2.8kg.cm@7.4V

32N.cm@8.4V - 3.2kg.cm@8.4V

Speed

0.20sec/60°@3.8V

0.13sec/60°@6.0V

0.10sec/60°@7.4V

0.09sec/60°@8.4V

Package Contents

1 * A08N V6.0 Coreless Metal Gear HV Servo Glider DLG
