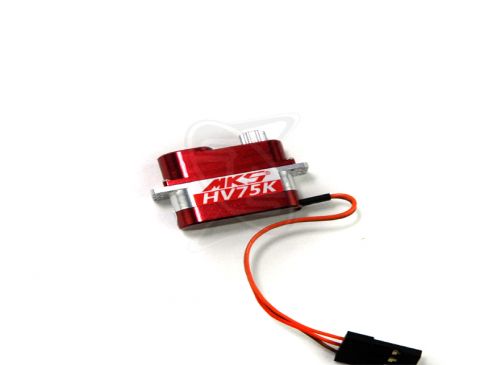

MKS HV75K Servo
SGD 98.13
MKS HV75K Servo for DLG, HLG, F3K
MKS HV75K Servo for DLG, HLG, F3K
Servo Specification
| Torque (kg-cm) | 1.4 (3.7V) / 2.3 (6.0V) / 2.8 (7.4V) / 3.3 (8.2V) |
| Torque (oz-in) | 19.4 (3.7V) / 31.9 (6.0V) / 38.9 (7.4V) / 45.8 (8.2V) |
| Speed | 0.21s (3.7V) / 0.13s (6.0V) / 0.10s (7.4V) / 0.09s (8.2V) |
| Stall Current (at locked load) | 0.9A (3.7V) / 1.5A (6.0V) / 1.9A (7.4V) / 2.0A (8.2V) |
| Working Voltage | 3.5V ~ 8.4V DC Volts |
| Working Frequency | 1520μs / 333Hz |
| Dead Band | 0.001 ms (Default) |
| Bearing | 1* Ball bearing + 1*Oil-retaining Bearing + 2*Jewel Bearing |
| Gear | Metal Alloy Gear |
| Motor | Coreless Motor |
| Weight: | 0.0300 |
