MODEL MOTORS AXI 2220/12 Gold Line V2

SGD 118.41

The high quality and performance of AXI 22xx V2 motors meant that they are a perfect base for development of the new AXI 2220/12 GOLD LINE.

QTY:

Description

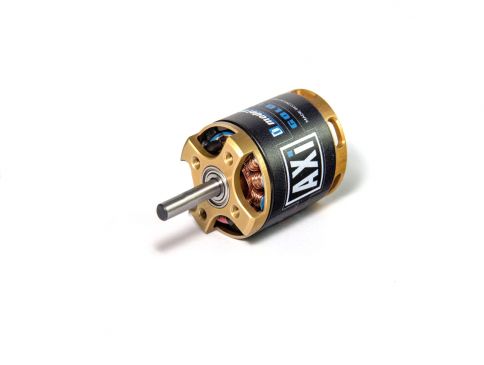

MODEL MOTORS AXI 2220/12 Gold Line V2

New small and powerfull motor AXI 2220/12 GOLD LINE V2 with rotating case is suitable for aerobatic models up to 1100g and for light sailplanes up to 1300g. Hardened steel Shaft have 4mm diameter and is supported by two large ball bearings wich ensure very good mechanical stability.

Thanks to using newest materials this motors achieve in their weight category extremely high efficiency and high load possibility. AXI GOLD LINE V2 with the high quality of manufacturing, reliability and performance are the best outrunners available in the market. A feature of the AXI design is provided for radial mounting (see picture below).

Delivered as standard radial mount set includes: mounting flange, propeller adaptor, securing collar, and screws.

Best Practices:

	WEIGHT	LI-POL	MAX CURRENT	ESC	PROPELLER
SAILPLANE	1200g	2s	30A / 60s	30A	13" x 6.5"
AEROBATIC	1100g	3s	30A / 60s	30A	7" x 7"
3D	900g	3s	30A / 60s	30A	9" x 7.5"

Technical Specification:

No. of cells	2-3s Li-Poly
RPM/V	1200 RPM/V
Max efficiency	87%
Max efficiency current	20-28A (>75%)
No load current	1.5A
Current capacity	40A / 60s
Internal resistance	76 mohm
Dimensions	27.7 x 37.9mm
Shaft diameter	4mm
Weight	87g
Max Power	450W
