MODEL MOTORS AXI 2220/16 Gold Line V2

SGD 118.41

The high quality and performance of AXI 22xx V2 motors meant that they're a perfect base for development of the new AXI 2220/xx GOLD LINE.

QTY:
Share this product

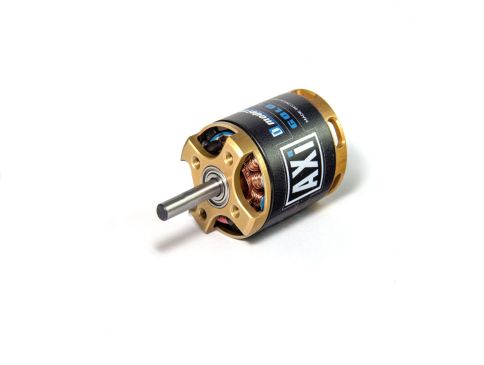

MODEL MOTORS AXI 2220/16 Gold Line V2

New small and powerfull motor AXI 2220/16 GOLD LINE V2 with rotating case is suitable for aerobatic models up to 800g and for light sailplanes up to 1000g. Hardened steel Shaft have 4mm diameter and is supported by two large ball bearings wich ensure very good mechanical stability.

Thanks to using newest materials this motors achieve in their weight category extremely high efficiency and high load possibility. AXI GOLD LINE V2 with the high quality of manufacturing, reliability and performance are the best outrunners available in the market. A feature of the AXI design is provided for radial mounting (see picture below). Delivered as standard radial mount set includes: mounting flange, propeller adaptor, securing collar, and screws.

Best Practices:

best practices_2220/16

Technical Specification:

No of cells2 - 3s Li-Poly
RPM/V910 RPM/V
Max. efficiency85%
Max. efficiency current     20 - 28A (>75%)
No load current1.5A
Current capacity38A / 60s
Internal resistance156 mohm
Dimensions27.7 x 37.9mm
Shaft diameter4mm
Weight87g
Max. power400W

2220/16

2220/16
