MODEL MOTORS AXI 2220/20 Gold Line V2

SGD 118.41

The high quality and performance of AXI 22xx V2 motors meant that they were a perfect base for development of the new AXI 2220/xx GOLD LINE.

QTY:
Share this product

MODEL MOTORS AXI 2220/20 Gold Line V2

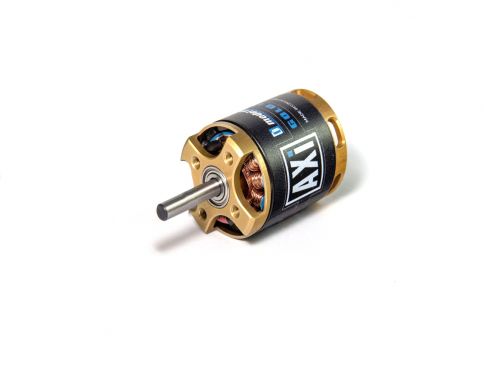

New small and powerfull motor AXI 2220/20 GOLD LINE V2 with rotating case is suitable for aerobatic models up to 900g and for light sailplanes up to 1200g. Hardened steel Shaft have 4mm diameter and is supported by two large ball bearings wich ensure very good mechanical stability.

Thanks to using newest materials this motors achieve in their weight category extremely high efficiency and high load possibility. AXI GOLD LINE V2 with the high quality of manufacturing, reliability and performance are the best outrunners available in the market. A feature of the AXI design is provided for radial mounting (see picture below).

Delivered as standard radial mount set includes: mounting flange, propeller adaptor, securing collar, and screws.

Best Practices:

best p

Technical Specification:

No. of cells2-3s Li-Poly
RPM/V720 RPM/V
Max. efficiency87%
Max. efficiency current     18-24A (>75%)
No load current0.7A
Current capacity30A/60s
Internal resistance73 mohm
Dimensions27.7 x 37.9mm
Weight87g
Max. power300W


te

gf

Weight: 0.1700
