MODEL MOTORS AXI 2808/24 Cyclone KV1190

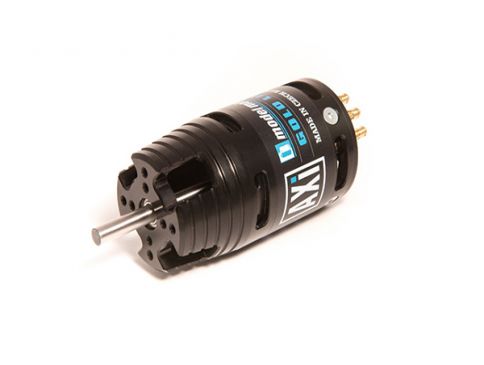

High torque brushless motor with rotating drum and high power neodym magnets suitable for models of 400-500 size, and up to 1500g in weight. The hardened steel 5mm diameter shaft and is supported by three ball bearings.

Delivered without prop. holder and Radial mount set.

Best Practices

cap p

Technical Specification

No. of cells     2-3 Li-Poly
RPM/V1190 RPM/V
Max. efficiency     84%
Max. efficiency current     6-15 A
No load current1 A
Current capacity25 A /60s
Internal Resistance115 mohm
Dimensions40 x 57mm
Shaft diameter5 mm
Weight130 g
Max. power240 W

s

Weight: 0.1600
