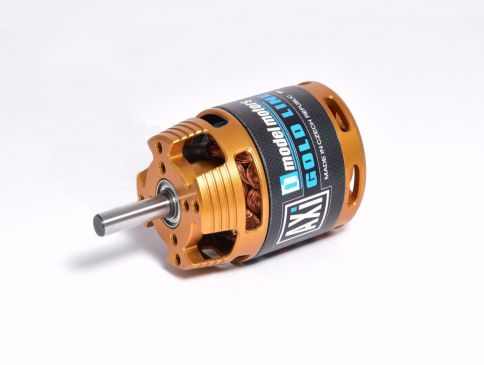

MODEL MOTORS AXI 2814/20 Gold Line V2 Long

SGD 121.50
The hardened steel 5mm diameter shaft and is supported by three ball bearings.

QTY:
Share this product

MODEL MOTORS AXI 2814/20 Gold Line V2 Long

High torque brushless motor with rotating drum and high power neodym magnets suitable for models of 500-600 size, and up to 1900g in weight. The hardened steel 5mm diameter shaft and is supported by three ball bearings.

Delivered without prop. holder and Radial mount set!

Specifications

No. of cells2-3 Li-Poly
RPM/V840 RPM/V
Max. efficiency85%
Max. efficiency current          8-17 A
No load current0.6A
Current capacity26A/60s
Internal Resistance145 mohm
Dimensions35 x 45 mm
Shaft diameter5 mm
Weight115 g
Max. Powerz355 W
