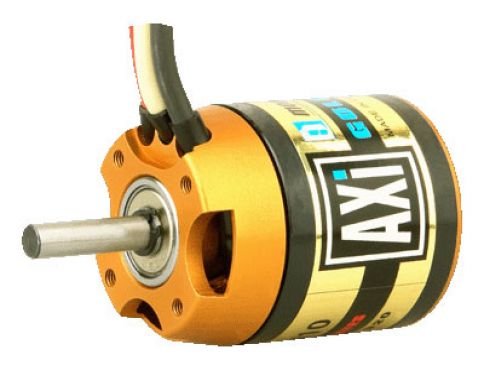

Model Motors AXI 2826/6 Brushless Motor
SGD 140.30
Model Motors AXI 2826/6 Brushless Motor is a high torque brushless motor with rotating drum and high power neodym magnets suitable for Sailplanes up to 2500g.
Model Motors AXI 2826/6 Brushless Motor is a high torque brushless motor with rotating drum and high power neodym magnets suitable for Sailplanes up to 2500g. Brushless motors are manufactured using advanced technologies from finest materials. Hardened steel shaft supported by three ball bearings and overall robust but lightweight construction ensure very long lifetime. The unique design of the motors gives extremely high torque allowing to rotate large diameter and pitch propellers without need of a gearbox. The optional radial mount set includes: mounting flange, propeller adaptor, securing collar, and screws.
Specifications:
| No. of cells: RPM/V: Max. efficiency: Max. efficiency current: No load current / 8V: Current capacity: Internal Resistance: Dimensions (diameter. x lenght): Shaft diameter: Weight with cables: | 6-10 Li-Poly 2-3 1500 RMP/V 82% 30 - 45 A (>75%) 3,5 A 65 A/30 s 25 mohm 35x54 mm 5 mm 181 g |
| Weight: | 0.2400 |
