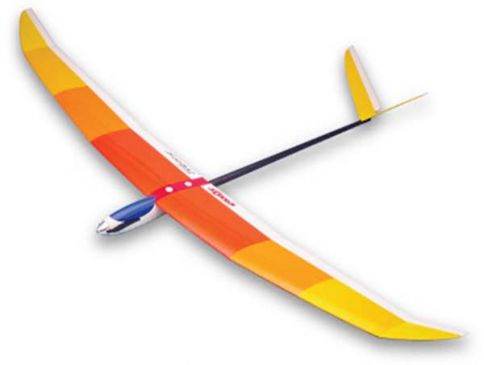

OK MODEL 11310 Pilot Hibiscus DX

Electric Sailplane

The ARF aircraft is designed with a beautiful elliptical wing, high aspect ratio, thin wing shape, long tail moment and narrow angle V-tail to suppress air resistance thoroughly and watch the F5J2000 competition.

Coloring with good visibility demonstrates its power even in competitions that are far from each other. The glass fiber pod has room to allow for a variety of motors.

The center upside angle makes it easier to handle small turns.

The ribbed full balsaplank main wing faithfully reproduces the airfoil studied. A well-balanced tail has less resistance and can be used for thermal hunting over a wide range. The 3-split main wing achieves compactness that is convenient to carry.

Hibiscus comes in three lineups: DX type with motor, folding prop set, basic type with aircraft only, and PnP aircraft with mechanical installed.

Main contents of the set
・ Semi-finished fuselage (glass pod, carbon tail boom)
・ Main wing with A film attached
・ Plastic canopy
・ Linkage parts　
・ Control horn
・ Color sticker　
・ Assembly manual

DX kit standard equipment
・ Brushless motor Tahmazo ER-221912d (48855)
・ Folding blade Tahmazo 10 × 6/8 (48690)
・ Spinner hub set Tahmazo AT38 / 8C3.18SM (48806)

- A high aspect wing with no straight line at the leading edge provides excellent glide performance.
- Large flaps that are independent on the left and right are powerful for spot landing.
- Linkage with minimal protrusions to reduce resistance.
- The tail area and shape determined as a result of repeated tests are efficient and have reduced air resistance.
- Servo, motor, battery, ESC and receiver fit in the canopy.
- After assembly, the main wing can be divided into three parts, which is convenient for transportation.
- Secure with tape. When flying, the wing tip panel is joined to the center wing with carbon kansashi.

Aircraft Specifications

・ Total length Length: 1158mm
・ Full width Wing Span: 1996mm
・ Main wing area Wing Area: 33.6dm2
・ Total weight Weight: 700-800g
・ Motor Motor: Tahmazo ER-221912d ( 48855 )
・ RC mechanism Radio: AL, FL, RD, EV , ESC
・ The completed wing can be divided into three parts.
・ Difficulty of flight: For intermediate / advanced users
・ Completion of aircraft: Completed film attachment
・ Power unit that can be mounted: Electric motor
