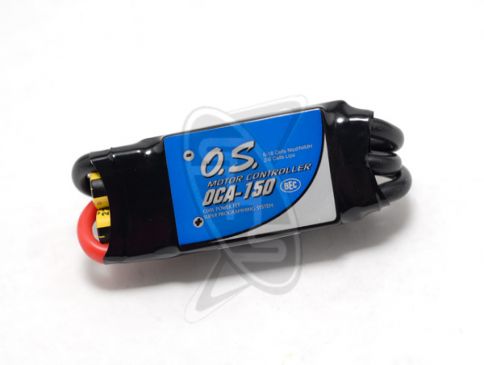

OS OCA-150 ESC
SGD 134.02
The OS OCA-150 ESC is installed with the latest FET for brushless motors. By using an optional programmer OCP-1, settings can be made to meet the model's specific requirements. Recommended for OS Brushless Motors OMA-3825-750 and OMA-3815-1000.
The OS OCA-150 ESC is installed with the latest FET for brushless motors. By using an optional programmer OCP-1, settings can be made to meet the model's specific requirements. Recommended for OS Brushless Motors OMA-3825-750 and OMA-3815-1000.
Features:
- Cool Power FET: the latest generation power FET
- Programmable with OS OCP-1 programming unit for detailed settings
- Safe Start Protection: Stops involuntary starting of the motor
- Low voltage cutoff: Stop the motor before the voltage reaches the level where control is lost and potential over-discharge damage to cells occurs
- No signal Cut-off: Turns off ESC when not receiving a signal from the transmitter
- Overheat Protection: When the temperature rises due to overload, restrict output to protect ESC
- Battery cell number auto recognition: Function to recognize automatically cell number of battery to connect
- BEC output: Power to receiver is supplied from the ESC
Specifications:
- Model class: 10-30
- Function: Forward-Stop-Brake-Reverse
- Battery cells: 6-18 NiCd/NiMH, 2-6 Lipo
- Battery types: NiCd, NiMH, LiPo
- Load Current: 50A load current (Peak 60A)
- Parameter setting: ESC Programmer OCP-1 (Optional)
- PWM Frequency: 32kHz
- Dimensions: 50 × 25 × 10 size (mm)
- Weight: 52g (including wire)
| Weight: | 0.1500 |
