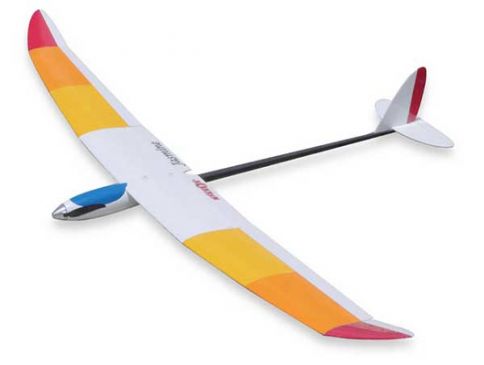

PILOT 11305 Jasmine - Basic

PILOT 11305 Jasmine - Basic

- High-aspect wings with no straight line at the leading edge demonstrate excellent gliding performance.
- Simplified complex linkage with adoption of single flap.
- Enjoy a fledged glider with 6 channel radio.
- The tail area and shape determined as a result of repeated test work efficiently and the air resistance is suppressed.
- A flap servo is mounted on the body. It is a simple linkage.
- The motor, battery, ESC and receiver fits in the canopy.
- Even after going up, the main wing can be split in three, which is convenient for transportation.
- The wingtip panel is joined to the central wing with a carbon canopy. When flying, use tape to stop it.

Aircraft Specifications:

· Full length Length: 1138 mm
· Full width Wing Span: 1910 mm
· Wing area Wing Area: 31.9 dm 2
· Weight total weight: 700 to 780 g
· Motor Motor: Tahmazo ER-221912 d ( 48855 )
· RC Mechanical Radio: AL, FL, RD, EV , ESC
· The main wing after completion can be divided into three.
· Difficulty of flight: for intermediate level
· Completed state of the aircraft: finished pasting
· installable power unit: electric motor

Main contents of the set

· Semi-finished fuselage (glass pod, carbon tail boom)
· A film stuck main tail wing
· plastic canopy
· linkage part　
· control horn
· color sticker　
· assembly instructions
