PowerBox Systems 3410 PowerBox BaseLog

SGD 405.20

The PowerBox BaseLog is a modern power supply system containing all the electronic components required to power modern receivers, servos and models.

QTY:
Share this product

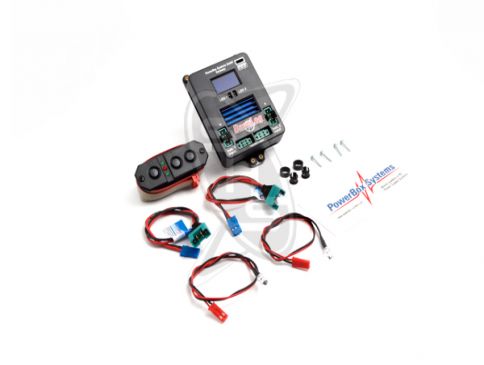

PowerBox Systems 3410 PowerBox BaseLog_1
The PowerBox BaseLog is a modern power supply system containing all the electronic components required to power modern receivers, servos and models. All the components required to power modern receivers, servos and models. All the components which are essential to a reliable power supply, i.e. ICs, micro-controllers and electronic circuits, are duplicated. The unit incorporates some of the latest electronic innovations, including a graphic OLED screen and the ability to transmit telemetry data from the PowerBox BaseLog to transmitters of various makes. The net result is that the unit provides unprecedented facilities for monitoring airborne batteries.

Features:

  • Dual regulated output voltage
  • User-selectable output voltage of 5.9 V or 7.4 V, software-variable using the SensorSwitch
  • Informative graphic OLED screen with a resolution of 128 x 64 pixels
  • Facility for connecting MPX and Spektrum downlink bus systems
  • Direct transmission of both batteries' voltage and capacity to the transmitter
  • Voltage display for each battery
  • Residual capacity display for both batteries
  • Minimum value memory for both batteries
  • Large heat-sink area for high regulator performance
  • Supports all currently used battery types: LiPo, NiMH / NiCd, LiFePo
  • Suppression of possible servo feedback currents
  • Various patch-leads (MPX / JR / Futaba, MPX / MPX) available, allowing the use of all receiver types
PowerBox Systems 3410 PowerBox BaseLog_2
Specifications:
  • Operating voltage: 4.0 Volt to 9.0 Volt
  • Power supply:
    2 x 2-cell LiPo battery, 7.4 Volt,
    2 x 5-cell NiCd or NiMH batteries,
    2 x 2-cell LiFePo battery (A123)
  • Current drain:
    Switched on: approx. 85 mA
    Switched off: approx. 10 µA
  • Dropout voltage: approx. 0.25 V
  • Max. receiver and 2 x 10 A (stabilised), according to cooling measures
  • Servo / receiver current: Peak 2 x 20 A
  • OLED screen resolution: 128x64 pixels
  • Bus systems: Spektrum, Multiplex
  • Temperature range: -30°C to +75°C
  • Dimensions: 93 x 67 x 19 mm (incl. base plate)
  • Weight: 88 g
  • SensorSwitch: 15 g
  • EMV approval: EN 55014-1:2006
  • CE approval: 2004/108/EG
  • Registered design: DE 203 13 420.6
Weight: 0.2300
