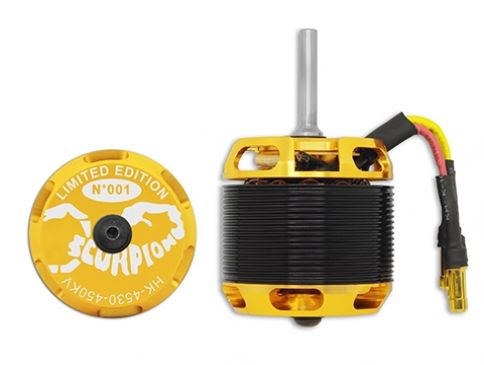

Scorpion HK-4530-450KV Brushless Motor (700 Heli) Limited Edition
The Scorpion HK-45 series motor is designed for using on 700 class helicopters running on 14-cell Li-Po power. This motor represents the most technologically advanced power source ever offered for a 700 class electric helicopter and also produces 20% more torque than the Scorpion popular HKIII-4035 series motors and exceed 90% efficiency.
Each of the new HK-4530-450KV Limited Edition motor is wound with a single strand of 1.4mm wire for the highest possible efficiency. This motor is capable of running continuously at an input power of 5400 watts at 110 amps, and can handle peak inputs of 9600 watts and 200 amps for 2 seconds.
Scorpion Competition Series Brushless Motors are built from the best materials available, and are designed to provide both quality and performance at an affordable price. Scorpion starts with high quality aluminum alloy parts that are produced on the latest CNC milling machines. These parts are then gold Electro-Coated to provide a beautiful, long-lasting finish. The stators are made with 0.2mm laminations to give maximum efficiency, and minimum Eddy current losses. The stators are epoxy coated to prevent shorts, and are wound with wire that is rated at 180 degrees C (356 F). The magnets used in Scorpion Motors are custom manufactured to be able to withstand high temperatures, making a motor that is virtually impossible to burn up in normal use.
*This motor is using 30mm bolt spacing on the mounting with M4 Screw holes
Specifications:
| Stator Diameter | 45 mm (1.77 in) |
| Stator Thickness | 30 mm (1.18 in) |
| No. of Stator Arms | 12 |
| No. of Stator Poles | 10 |
| Motor Wind | 6T+5T in double Wye |
| Motor Wire | 1-Strand 1.4 mm |
| Motor Kv | 450KV RPM/Volt |
| No-Load Current (Io/10V) | 1.71 Amps |
| Motor Resistance (RM) | 0.0130 Ohms |
| Max Continuous Current | 110 Amps |
| Max Continuous Power | 5400 Watts |
| Weight | 565 Grams (17.25 oz) |
| Outside Diameter | 56.7 mm (2.23 in) |
| Shaft Diameter | 5.98 mm (0.24 in) |
| Body Length | 60.6 mm (2.39 in) |
| Overall Shaft Length | 100.0 mm (3.94 in) |
| Max Lipo Cell | 14s (for Best Setup) |
| Max Peak Current | 200A (2 seconds) |
| Max Peak Power | 9600 Watts (2 seconds) |
| Motor Timing | 5deg to 15deg |
| Drive Frequency | 8kHz to 12 kHz |
Included in the Box:
1 x Scorpion HK-4530-450KV Motor
3x Female 6mm Connectors
3x Heat Shrink
