Siglo Lux F3 Flight Controller

The Lumenier LUX Flight Controller provides high quality flight control using the powerful F3 processor along with the top of the line hardware. Unleash the capabilities of its Quadcopter Racing FPV Flight Controller with the LUX Lumenier. Achieve gyro refresh rate up to 8 kHz (high speed SPI) using popular Betaflight and Raceflight firmware along with ultra looptimes. The LUX comes with CleanFlight pre-installed.

The Lumenier LUX is a very low profile board that allows it to be assembled in a variety of ways. The joint also comes with a set of pin heads can optionally weld on. Alternatively, signal cables can be soldered directly to the pads to save on size and weight. The LUX supports PPM or RX Serial (including Futaba, FrSky, S. BUS). An inverter signal is already included for S. BUS. Please note: Baseflight firmware is not supported, and PWM input of individual channels is not supported.

Hardware Features

- USB Hardware Conflicts-inversion resolution, SBUS or telemetry can be used on any of the 3 available serial hardware ports. USB will not interfere with the peripherals.

- SPI high speed 8 kHz Gyro

- MPU interrupt connected to F3, allowing the F3 to know immediately when new data is available.

- Dedicated Boot button to facilitate flashing firmware.

- Reinforced soldering points for seamless soldering.

- Extremely low profile design.

- Recessed, sideways male connectors. Also allows the welding of all cables directly to the pads without the use of any pin headers.

- Integrated FRSky RSSI Filter (RC filter).

- Input voltage from 6 to 24 volts. Feed the plate directly from the flight pack to 6 S (on 'BAT' pad only!).

- VIN + VBAT Single-wire to feed the merged card provide input voltage and Telemetry / OSD voltage data.

- Filtered voltage output -  output 5V 1A (and 3.3V where applicable) to power peripherals such as GPS, RX, BLACK BOX, OSD. 5 v / 3.3 v selectable RX.

Software / Hardware Features

- Cleanflight support (destination RACE).

- BLHeli intermittent with hardware support

- Raceflight ready

- Betaflight ready

Specifications

- STM32F303RCT6 (256kB flash) 32-bit processor

- MPU6500 Gyro / Accelerometer

- High quality, gold plated PCB

- High quality components, Lumenier comes individually to meet the standards

- Micro USB connector for programming

Dimensions: 36x36x6mm (includes USB in height)

Mounting holes: 30.5mm square to the center of the holes

Weight: 6g

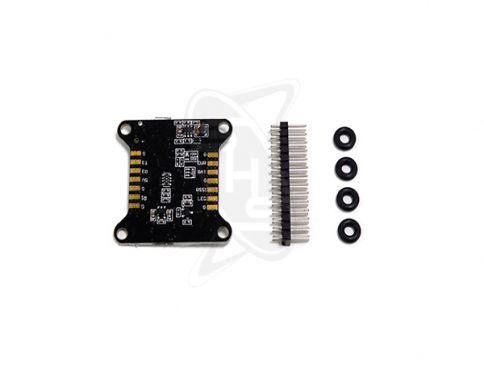

It includes

- 1 x Lumenier Lux Flight Regulator

- 2 x 2x7 Straight Pin Headers
