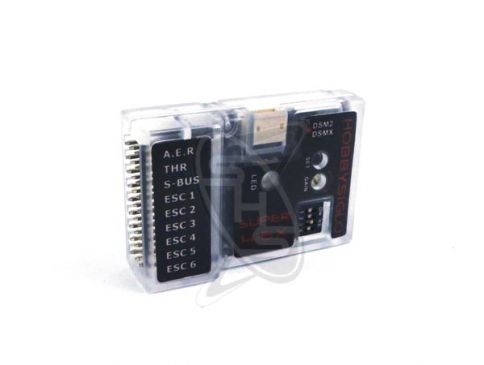

The Super Multi-Rotor Controller is small and lightweight, and designed for use with 250 to 600 size 4-axis and 6-axis multi-copters. It supports configurations for four different flight modes and four different receiver types, and features a built-in auto-stabilization function and acceleration sensor for stable, controlled flight. The Super Multi-Rotor Controller is easy to set up and calibrate and features an adjustable gain dial to fine-tune the sensitivity of your model’s flight controls. The Super Multi-Rotor Controller includes double-sided foam mounting tape, two pre-wired flight control adapters and a gain adjustment tool.
Features:
• Small and Lightweight - Designed for Use with 250 to 600 Size 4-Axis and 6-Axis Multi-Copters
• Built-In Auto-Stabilization Function and Acceleration Sensor for Stable, Controlled Flight
• Supports Four Different Flight Modes: ‘X4’, ‘+4’, ‘X6’ and ‘HEX6’
• Compatible with Standard, S-Bus, DSM2 and DSMX Receivers
• Adjustable Gain Dial to Fine-Tune Flight Sensitivity
• Easy to Set Up and Calibrate
Specifications:
Operating Voltage Range: | 3.6V to 8.4V |
Operating Current: | 60mA |
Processor: | 32-Bit ARM® |
Output Rate: | 360Hz |
Dimensions: | 1.69 x 1.14 x 0.51” (43 x 29 x 13mm) |
Weight: | 0.31 Ounces (9g) |
Weight: | 0.0300 |
