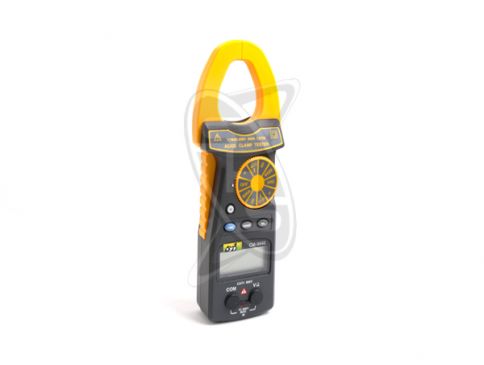

Ty1 Mini DCA/ACA Clamp Meter

SGD 118.80

This Ty1 Mini DCA/ACA Clamp Meter can measure AC or DC Voltage, AC or DC Current, resistance, diode, frequency, etc. Ideal when you need to know how your batteries and motors are performing. The Ty1 clamp meter is a useful measurement instrument for RC enthusiasts.

QTY:

Share this product

This Ty1 Mini DCA/ACA Clamp Meter can measure AC or DC Voltage, AC or DC Current, resistance, diode, frequency, etc. Ideal when you need to know how your batteries and motors are performing. The Ty1 clamp meter is a useful measurement instrument for RC enthusiasts.

Ty1 Mini DCA/ACA Clamp Meter_1
Features:
  • Design meet IEC 1010 CATIII 600V safety requirement.
  • 4000 counts, Auto Range and Multi-Functions
  • Measurement for ACA, DCA, ACV, DCV, Ohms, Diode, Hz.
  • Water resisiting front panel.
  • Data Storage
  • Wide range current measurement for both ACA & DCA (600 A, 400 A)
  • Overload protection circuit is provided for all range.
  • LSI circuit provides high reliability and durability.
  • Pocket design, slim housing case
  • Design for heavy duty with ABS housing fireproof plastic case.
Ty1 Mini DCA/ACA Clamp Meter_2
Ty1 Mini DCA/ACA Clamp Meter_3
Ty1 Mini DCA/ACA Clamp Meter_4
Ty1 Mini DCA/ACA Clamp Meter_5
Specifications:
Display:10.8mm (0.43") LCD, 4 Digits, Max. indication 5000
Measurement Range:ACA, DCA, ACV, DCV, Ohms, Diode, Hz
Polarity:Automatic Switching, "-" indicates negative polarity
Current Sensor:Hall effect sensor
Zero adjustment:DCA: Push bottom adjustment
Other ranges: Automatic adjustment
Over-input:Indication of "1" or "-1"
Sampling Time:Approximately 0.35 second
Battery:2 x 1.5V AA (UM-3) batteries
Operating Temperature:0 oC to 50 oC (32 oF to 122 oF)
Operating Humidity:Less than 80% RH
Weight:230 g/0.50 LB (including battery)
Dimension:HWD: 178 x 64 x 33 mm (7.0 x 2.5 x 1.3 inch)
Max. Conductor Size:30 mm (1.18 inch) Dia
Accessories Included:Operation Manual (1 pc), Test lead_Black & Red (1 pc)
Optional Accessories & Adapters:Carrying case, Temperature adapter, Light adapter, Anemometer adapter,
Pressure adapter, RH adapter, Tachometer adapter, High Voltage Probe
Ty1 Mini DCA/ACA Clamp Meter_6
Ty1 Mini DCA/ACA Clamp Meter_7
Ty1 Mini DCA/ACA Clamp Meter_8
Ty1 Mini DCA/ACA Clamp Meter_9
Weight: 0.3800
