Description

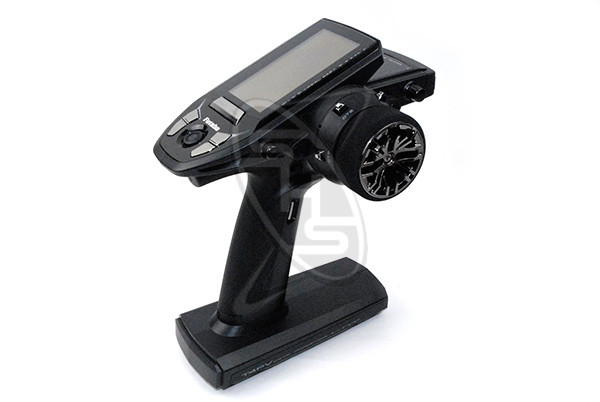

The Futaba 4PV-2.4HGz provides live telemetry data for your vehicles temperature, RPM, receiver and external voltage levels. It features audible alerts via audio jack allowing you to focus on driving while staying in the know.
With adjustable throttle position, throttle tension, steering tension and 5-optional accessories, the 4PV offers customizable ergonomics to make the radio uniquely yours.
The 4PV is compatible with two T-FHSS receivers and six S-FHSS receivers and can be updated thru the CIU-2 and CIU-3 interface, ensuring your 4PV is always updated with Futaba's latest technological innovations.
To get the most out of your vehicle and 4PV, you can use the included R314SB T-FHSS receiver. This version comes with 2 receivers, R314SB.
4PV FEATURES T-FHSS and S-FHSS protocols Large backlit LCD screen Telemetry functions with logging capabilities and audible alerts Six digital trims 40-model memory 10-character model naming S.Bus/S.Bus2 servo programming Direct Model Select Model Copy/Model Clear Alarm tone adjustments Fail Safe Dial trim step select Firmware updatable via CIU-2 or CIU-3 Compatible with 2S LiFe batteries, NiMHs, dry cells and other battery options
SERVO ADJUSTMENTS Digital steering trim Digital steering trim rate Steering reverse Steering dual rates Steering EPA (End Point Adjustments) Steering expo Steering sub trim Digital throttle trim rate Throttle reverse Throttle EPA (End Point Adjustments) Throttle ATL Mechanical ATL Throttle expo Throttle sub trim ABS Idle-up Throttle acceleration Throttle preset (hold) Throttle servo speed
MIXING FUNCTIONS Programmable mixing 4WS mixing Brake mixing Gyro mixing Steering mixing Throttle mixing
| BASIC FUNCTIONS Backlit 39x74mm dot matrix LCD screen with contrast Audible alarm Adjustable steering tension Angled antenna Adjustable steering position (angle/APA) Adjustable throttle position (forward/back) Telemetry data speech via earphone Servo link (programming S.Bus servos from the transmitter) One digital dial (programmable) One push switch (programmable) One push lock switch (programmable) Four push switches and one jog dial for navigation Automatic power off S.Bus servo setting Display switch (allows adjustments in the settings without turning on the RF signal) Two types of grip pads
CHANNEL 3 & 4 PROGRAMMABLE FUNCTIONS TIME FUNCTIONS |
IN THE BOX
1. Futaba 4PV-2.4GHz x 1
2. R314SB x 2pc
3. Instruction Manual
4. Battery Box
