Description

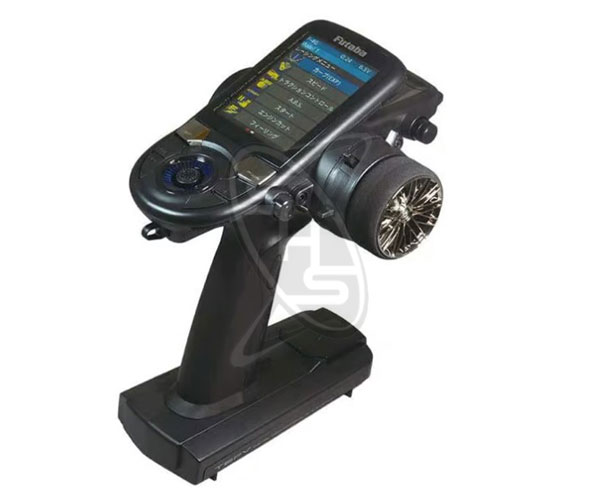

This is Futaba 6PV 6-Channel Surface Transmitter w/ R404SBSE Receiver. This is a mid-high class transmitter that adds the elements of the T10PX to the operability of the T4PM Plus. The full-color display allows intuitive operation. In addition, by supporting the fastest system "F-4G", it is easier to feel the "response/feeling function" that gives stability to operation.
Feature:
-The T6PV transmitter is compatible with "F-4G", "T-FHSS", "S-FHSS", and "MINI-Z" modes.

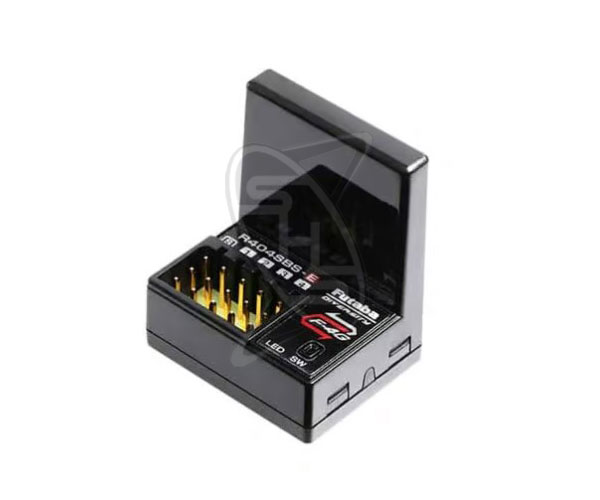

-The R404SBS-E are receivers compatible with "F-4G".
-F-4G system and UR mode provide high-speed response approaching that of the T10PX radio
-Equipped with 6 system modes: F-4G, T-FHSS, S-FHSS, MINI-Z EVO, MINI-Z EVO2 & MINI-Z FHSS
-Normal, Big, and Drift "Model Types"
-Also equipped with settings for crawlers
-Response/Feeling adjustment function: By adding a mild flavor while taking advantage of the high-speed response, it becomes easier to drive.
-Supports up to 6 channels
-Lightest in its class & high balance design
-Equipped with micro SD card slot
-The micro SD card is used to save model data, telemetry data, display photos of your car on the transmitter, and when updating the software. (Micro SD card sold separately. Supports SD/SDHC, not SDXC)
-New wheel unit/APA/APA angler/trigger
-Grip rubber: In addition to the included size (M), you can choose a size that is easy to use from the optional grip rubber (S or L).
-Wheel position can be adjusted with the steering APA (Included: Steering APA (24.0) & Angle spacer (5°)
-Trigger end point adjustment: If you use the optional T10PX dedicated trigger setting parts set, you can adjust the end point in the throttle (=FWD) direction with the spacer, so you can adjust the throttle operation to your preferred feeling.
-Setup with high-brightness wide-angle full-color LCD and jog key
Specification:
Servo view: Allows you to check the servo operation of all channels. You can check the operation when adjusting the steering angle or setting the mixing function.
Throttle mode: Allows you to set the neutral brake, which applies the brakes when the throttle trigger is in the neutral position.
Reverse: This function determines the direction in which servos and other devices operate in response to the operation of the steering, throttle, channel 3/4, and other auxiliary channels of the transmitter.
Sub trim: Used when assembling a model to fine-tune the center position of the servo horn that serves as the reference for the servo horn of each servo and the linkage that connects the parts with rods.
End point: Used during linkage to adjust the steering angle left and right, the throttle high side/brake side operation amount, and the up side/down side operation amount of channel 3/4 and other auxiliary channels.
Fail-safe function: This function sets the servo operation position in case the receiver is unable to receive the transmitter signal for some reason or the receiver battery voltage drops. The failsafe, hold, and OFF modes will be automatically released when signals from the transmitter are received again.
Acceleration: The throttle forward/brake ramp-up characteristics near neutral can be adjusted separately.
Trim/dial settings: The functions that can be operated with the digital trim (DT1 to DT6) and dial (DL1) can be set.
Switch settings: Select the functions to be operated with the push switches (SW1 to SW3) and set the operation method.
Idle up: Used to improve engine starting by raising the idling when starting the engine of a gasoline engine car (boat). This function is also effective when you want to prevent braking when the power is turned off while driving due to the gear ratio settings or the motor used in an electric car. However, if you are using MC971CR, MC970CR, MC960CR, MC950CR, MC851C, MC602C, MC402CR, etc., as with the neutral brake function, turn on the idle up function switch after the ESC recognizes the neutral position and becomes operable.
D/R, ATL
Channel setting: This function allows you to assign steering or throttle to any channel. This is a convenient function when you want to use steering or throttle on a different channel, or when you want other channels to operate in the same way as steering or
Include:
Futaba 6PV 6-Channel Surface Transmitter w/ R404SBSE Receiver (1 set)
Accessory Set
