Description

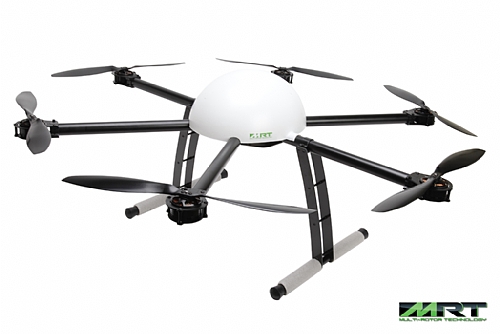

The Gaui 840H Hexa Flyer is a 840mm wheelbased collapsible multi-rotor platform that offers excellent stability, outstanding wind resistance and additional payload capability (up to a max. flying weight of 8Kg). It also incorporates designs in its boom, CNC motor mounts and integrated speed controllers that efficiently dissipate heat for best performance.

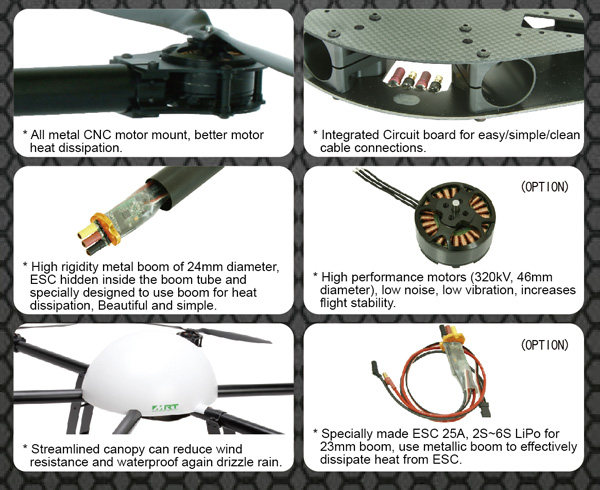

Features:
- High rigidity steel boom.
- All metal CNC motor mount for better motor heat dissipation.
- Integrated circuit board for easy, simple and clean cable connections.
- High performance motors (320kV, 46mm diameter) that are low noise and low vibration that improves flight stability.
- Integrated ESCs in the booms which als ohelp dissipate heat.
- Large space main frame with enough room for all existing flight stabilizer systems and other electronics.
- Simple, easy and fast mounting and disassembly of landing gears.
- Folding boom design for great portability.
Specifications:
- Motor to motor distance 840mm
- Height: 360mm
- Weight: 2400g (without battery)
- Maximum flying weight: 8000g
- Battery: Max 22.2V (6S 5,000-10,000mAh Lipo)
- Flying duration: 7-20 minutes (Depends on battery capacity, payload and flying style)
Required to fly:
- Radio 4~5 Channels
- Receiver
- Flight stabilizer
- 6x motors (320kV-450W)
- 6x 25A ESCs
- 6x 15x4.5 propellers
- Battery: 6S Lipo
- Battery charger
This package includes:
- Main frame
- Landing gear
- Battery strap
- Cable ties x 2
- Instruction manual
Gaui 226002 840H Hexa Flyer (Combo Kit A) is also available.
