Description
The Tahmazo SVR3-6V Switching Voltage Regulator is probably the most capable and reliable BEC on the market.
At one end, the SVR3-6V is connected to any receiver. Any battery from 2-4 cells lithium battery can be used with this SVR3-6V giving you a constant output of 6V using the high efficient switching voltage technology that minimises heat dissipation and energy wastage.

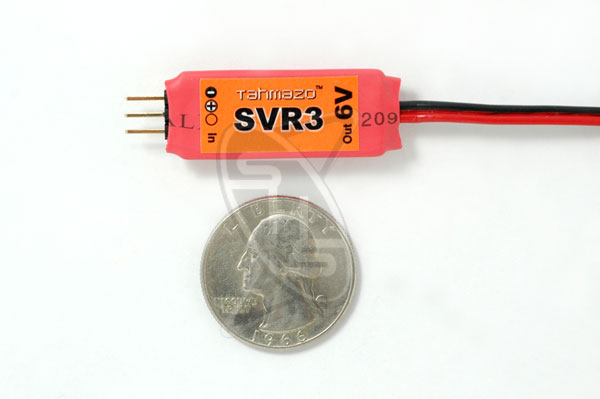

The Tahmazo SVR3 Switching Voltage Regulator shown here in comparison with a US quarter dollar.
Specifications:
| Function: Output Voltage: Output Current: Input Voltage: Weight: Dimension: | Switching Voltage Regulator 6.0v 3.0A (continuous) 4.0A (for 20 seconds) 5.0A (for 15 seconds) Peak current varies according to the input voltage applied and these readings are based on 3mph airflow over the SVR3-6V. Servo connectors are not rated for current exceeding 3.0A 7.0v - 17.0v 6.2g 41.0 x 12.5 x 7.0mm |
Notes:

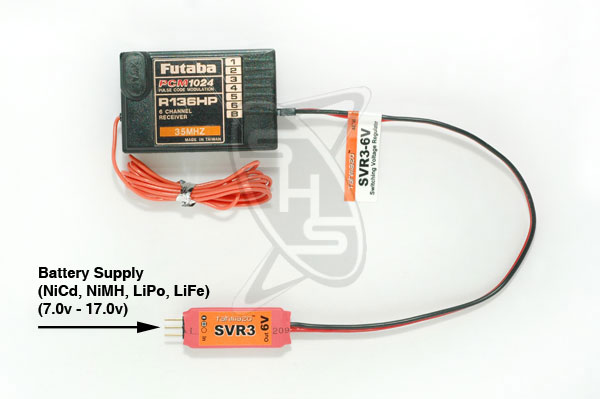

The Tahmazo battery and SVR connector shown here are for illustrative purpose only. Not included in the package.
The Tahmazo battery and SVR connector shown here are for illustrative purpose only. Not included in the package.

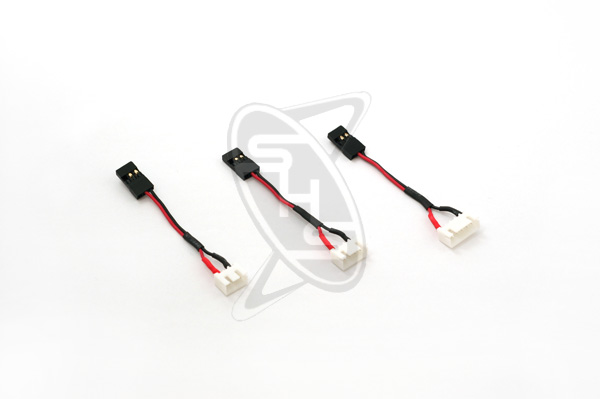

Tahmazo SVR Connectors are available separately (2 cells, 3 cells or 4 cells). Not included in package.
