$92.11

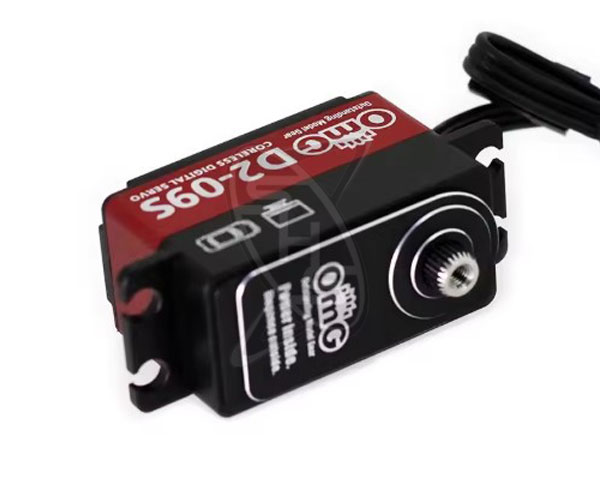

OmG D2-09S 9kg Full Metal Coreless Digital Standard Low Profile Servo High Voltage Programmable For 1/10 Rc Drift Off-road Rc Car
2 in stock
OmG D2-09S 9kg Full Metal Coreless Digital Standard Low Profile Servo High Voltage Programmable For 1/10 Rc Drift Off-road Rc Car
Features:
Product parameters:
Outer shell: CNC machining of upper middle shell metal, bottom shell plastic
Motor: Coreless motor
Gear: stainless steel gear
Waterproof: splash-proof
Programming: can be Programmable by computer
Working voltage: 4.8-8.4V
The fastest speed:
6.0V-0.075sec/60°
7.4V-0.068sec/60°
8.4V-0.062sec/60°
Locked-rotor torque:
6.0V-9.7kg-cm/(135oz-in)
7.4V-11kg-cm/(153oz-in)
8.4V-12.2kg-cm/(169oz-in)
Output gear: 25T

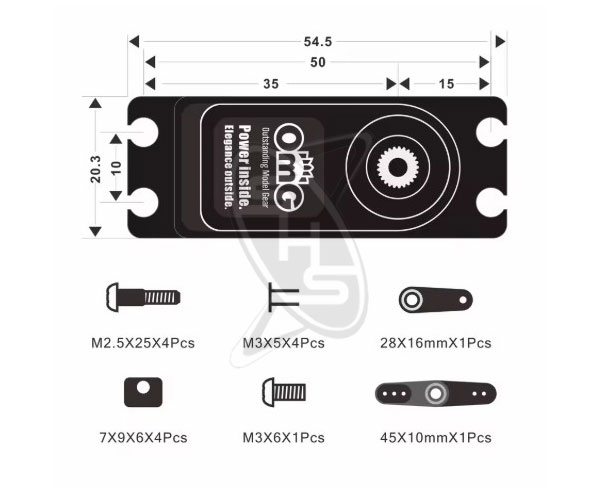

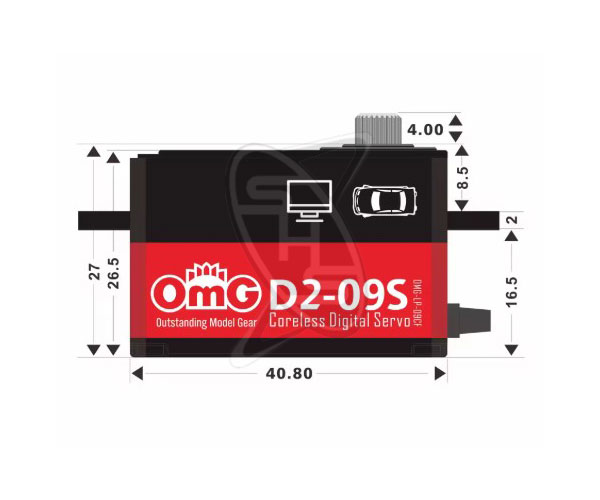

Product size: 41x20.5x26 mm
Product weight: 53g
Operating stroke: 180±10°(500-2500μsec)
Rotation direction: 180°(1000-2000μsec)
Angle limit: 220
Neutral point: 1520μsec
Maximum stroke: ≈180°(500-2500μsec)
Pulse width range: 500-2500μsec
Death drive pulse width: 2μsec
Wire length: JR180 mm
Wire model: #22PVC
