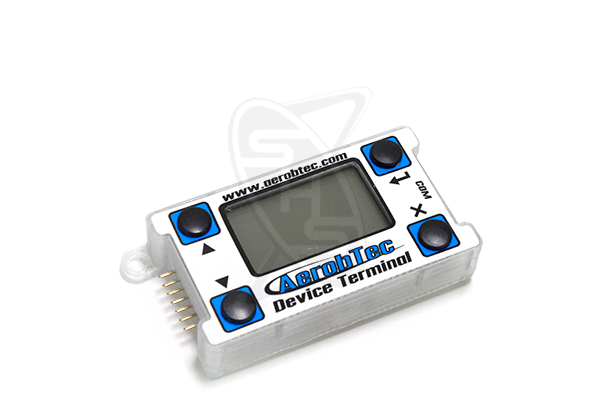

AEROBTEC Altis Device Terminal

Description

The AEROBTEC Altis Device Terminal serves for data readout and parameter adjustment for supported devices such as Altis Micro. It is also a multfunctional device able to measure LiPo batteries, PWM, RPM and RC Servo tester.

Specifications:

Dimensions: 71 x 45 x 10mm

Weight: 38g

Operating temperature: 0°C - 50°C

Power supply range: 4 - 8.4V, from USB adapter or from aircraft fuselage (via Altis Micro), measured LiPo battery or from RC In connector

Input voltage range: Cell 1: 8.4V, Cell 2 - Cell 6: 0V - 30V

Servo tester - Output 50Hz/1.5ms or 550Hz/0.75ms

Graphical display: 128 x 64px

Upgradeable firmware
