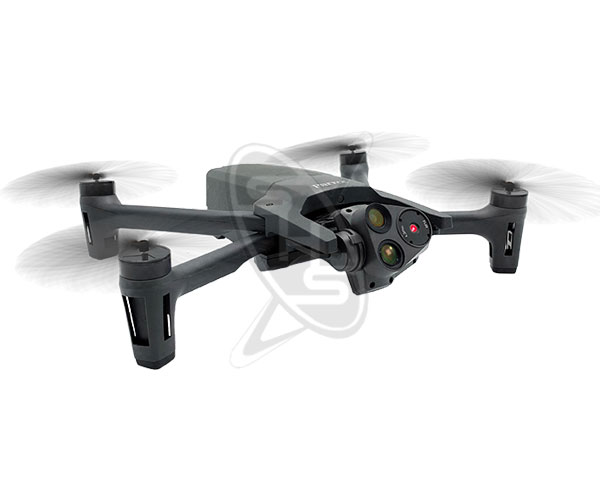

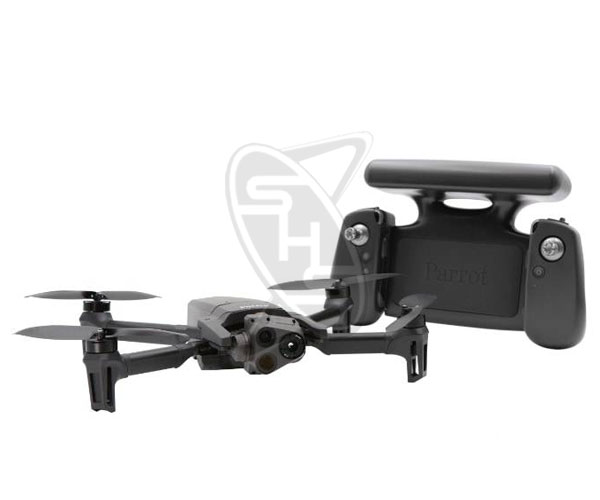

ANAFI USA

Description

Please email sales@singahobby.com for inquiries.

Drone Specifications

• Size folded: 252 x 104 x 84 mm


• Size unfolded: 282 x 373 x 82 mm


• Size unfolded on MIL version: 282 x 373 x 192 mm


• Mass: 500 g / 1.10 lb


• Maximum take-off mass (MTOM): 644 g / 1.42 lb.


• Maximum flight time: 32 minutes (30 minutes on MIL version)


• Maximum horizontal speed: 14.7 m/s


• Maximum ascent speed: 4 m/s (6 m/s on unlocked SE, GOV and MIL versions)


• Maximum descent speed: 3 m/s


• Maximum wind resistance: 14.7 m/s


• Maximum propeller speed: 11,000 rpm


• Sound power level at 1 m (3 ft): 84 dB


• Service ceiling: 5,000 m above MSL (Mean Sea Level)


• User defined geofencing


• IP53 certified: dust and rain resistant


• Operating temperature: -33 °F (-36 °C) to +122 °F (+50 °C)


• No take-off temperature limitations

Security

• Zero data shared by default


• SD card AES-XTS encryption with a 512 bits key


• WPA2 AES CCMP encrypted network connections


• Digitally signed firmware

Sensors

• Satellite navigation: GPS, GLONASS & GALILEO


• Barometer and magnetometer


• Vertical camera and ultra-sonar


• 2 x 6-axis IMU


• 2 x 3-axis accelerometers


• 2 x 3-axis gyroscopes

EO image chain

• 2 sensors: 1/2.4"


• Digital zoom: 32x


• Electronic shutter speed: 1 s to 1/10,000 s


• ISO range: 100 - 3200


• Video resolution: 4K/FHD/HD


• Video format: MP4 (H.264)


• Photo resolutions:


• Wide: 21 MP (84° FOV)
  Rectilinear: up to 16 MP (up to 75.5° FOV)
  Photo formats: JPEG, DNG (Digital NeGative RAW)

IR image chain

• Sensor: FLIR BOSON


• Digital zoom: 32x


• -40°C to +150°C temperature range


• Thermal sensitivity: ≤60 mK


• Measured IR wavelength range: 7.5 to 13 micrometers


• Video resolution: 1280 x 720 px


• Video format: MP4 (H.264)


• Framerate: 9 fps


• Photo resolution: 320 x 256 px


• Photo format: JPEG

Image stabilization

• 3-camera IR/EO stabilized gimbal:


• Hybrid: 3-axis
  Mechanical: 2-axis roll / pitch
  Electronics (EIS): 3-axis pitch / roll / yaw
  Controllable gimbal tilt range: -90° to +90°

Fast-charging smart battery

• Type: High density LiPo (3 x 4.4 V cells)


• Capacity: 3,400 mAh


• Battery life: 32 minutes


• Charging port: USB-C


• Charges in 2h with a USB-PD (Power Delivery) charger


• Mass: 195 g / 0.43 lb.


• Voltage: 11.55 V


• Maximum charging power: 30 W

Ecosystem

• Open Source SDK for Developers


• Extensive Partner Program
