Description

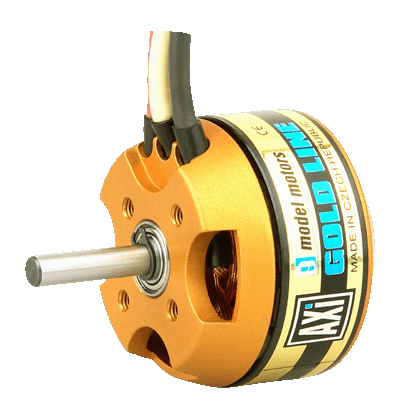

The high torque AXI 2808/20 GOLD LINE Brushless Motor with rotating drum and high power neodym magnets is suitable for models of 400-500 size, and up to 1500g in weight. The hardened steel 4mm shaft is supported by two ball bearings, and the overall robust construction ensures a long service life. With its high torque characteristics, this motor is capable of turning large propellers with a high level of efficiency without the need for a gearbox. AXI 2808/20 GOLD LINE is suitable for use with optional radial mount set which includes: mounting flange, propeller adaptor, securing collar and screws.
Specification
| No. of cells | 6 – 10 Nicd/Nimh, 2 – 3 Li-Poly |
| RPM/V | 1490 RMP/V |
| Max. efficiency | 80% |
| Max. efficiency current | 10 – 15 A (>75%) |
| No load current / 10 V | 1.3 A |
| Current capacity | 22 A/60 s |
| Internal Resistance | 105 mohm |

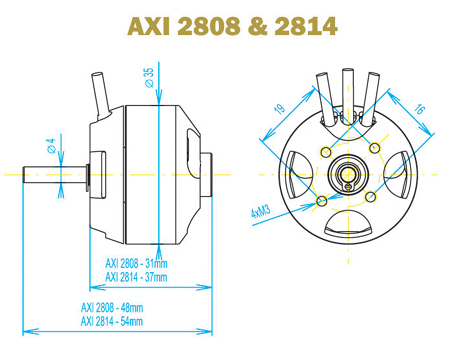

| Dimensions (diameter x length) | 35×31 mm |
| Shaft diameter | 4 mm |
| Weight with cables | 76 g |
Check out:
AXI 2808/2814 Radial Mount
