Description

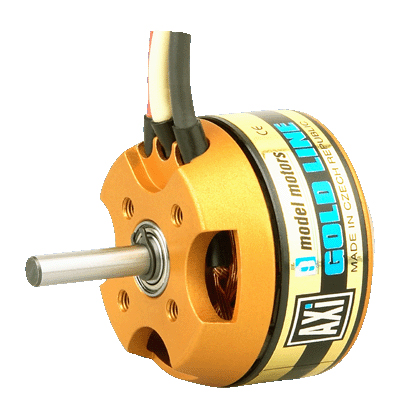

The high torque AXI 2808/24 GOLD LINE Brushless Motor with rotating drum and high power neodym magnets is suitable for models of 400-500 size, and up to 1500g in weight. The hardened steel 4mm shaft is supported by two ball bearings, and the overall robust construction ensures a long service life. With its high torque characteristics, this motor is capable of turning large propellers with a high level of efficiency, without the need for a gearbox. AXI 2808/24 GOLD LINE is suitable for use with optional radial mount set which includes: mounting flange, propeller adaptor, securing collar and screws.
Specification
| No. of cells: | 6 - 10 Nicd/Nimh, 2 - 3 Li-Poly |
| RPM/V: | 1190 RMP/V |
| Max. efficiency: | 82% |
| Max. efficiency current: | 6 - 15 A (>75%) |
| No load current /10 V: | 1 A |
| Current capacity: | 22 A/60 s |
| Internal Resistance: | 115 mohm |

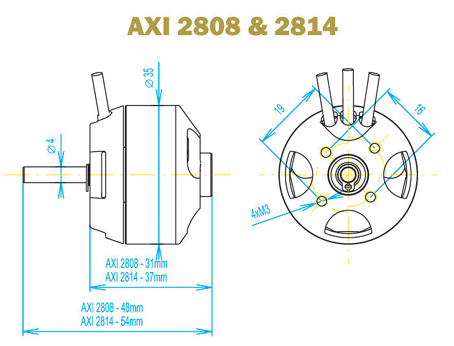

| Dimensions (diameter x length): | 35x31 mm |
| Shaft diameter: | 4 mm |
| Weight with cables: | 76 g |
Check out:
AXI 2808/2814 Radial Mount
AXI 2808/2814 Radial Mount
