Description

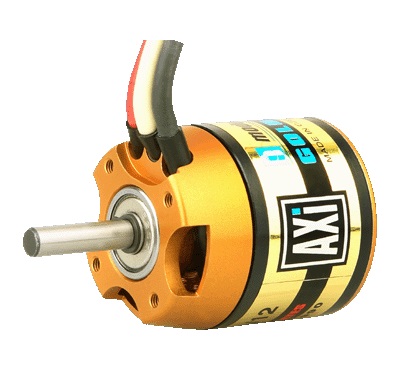

The high torque AXI 2820/10 GOLD LINE Brushless Motor with rotating drum and high power neodym magnets is suitable for models of 600 - 700 size, and up to 2500 g in weight. With its high torque characteristics, this motor is capable of turning large propellers with a high level of efficiency, without the need for a gearbox. The hardened steel shaft is supported by two ball bearings, and the overall robust construction ensures a long service life. AXI 2820/10 GOLD LINE is suitable for use with optional radial mount set which includes: mounting flange, propeller adaptor, securing collar and screws.
Specification| No. of cells | 8 - 10 Nicd/Nimh, 3 - 4 Li-Poly |
| RPM/V | 1200 RMP/V |
| Max. efficiency | 83% |
| Max. efficiency current | 20 - 30 A (>76%) |
| No load current/ 10 V | 2.3 A |
| Current capacity | 42 A/60 s |
| Internal Resistance | 39 mohm |

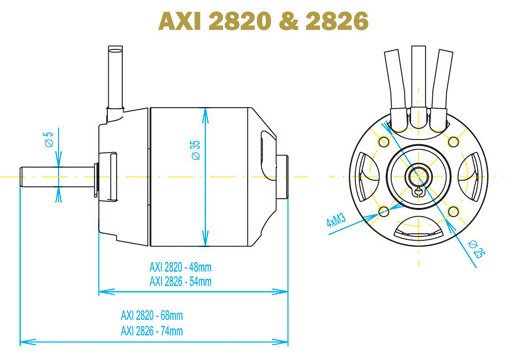

| Dimensions (diameter x length) | 35x48 mm |
| Shaft diameter | 5 mm |
| Weight with cables | 151 g |
