Description

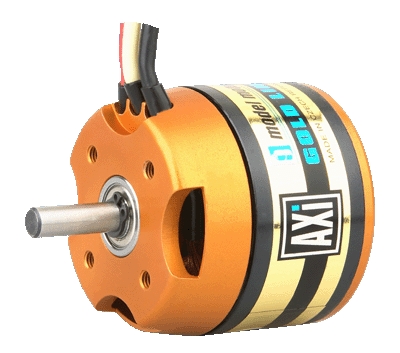

The AXI 4120/18 GOLD LINE Brushless Motor with neodymium magnets and a rotating case is manufactured using the latest technology from the finest quality materials. The hardened steel shaft is supported by three ball bearings, and the overall robust construction ensures a long service life. AXI 4120/18 GOLD LINE is suitable for use with optional radial mount set which includes: mounting flange, propeller adaptor, securing collar and screws. With its high torque characteristics, this motor is capable of turning large propellers with a high level of efficiency. This motor is suitable for large sailplanes weighing up to 5000g and sports aerobatic models up to 3500g.
Specifications:
| No. of cells: | 16 – 20 Nicd/Nimh, 5 – 7 Li-Poly |
| RPM/V: | 515 RMP/V |
| Max. efficiency: | 86% |
| Max. efficiency current: | 15 – 40 A (>82%) |
| No load current /10 V | 1,5 A |
| Current capacity | 55 A/60 s |
| Internal Resistance | 70 mohm |

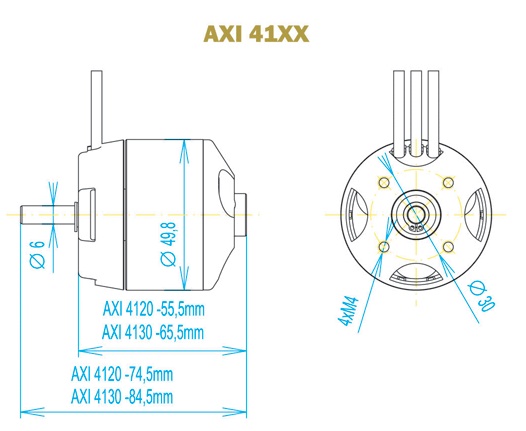

| Dimensions (diameter x length) | 49.8×55.5 mm |
| Shaft diameter | 6 mm |
| Weight with cables | 320 g |
