Description
The AXI 4130/16 GOLD LINE Brushless Motor with neodymium magnets and a rotating case is manufactured using the latest technology from the finest quality materials. The hardened steel shaft is supported by three ball bearings, and the overall robust construction ensures a long service life. AXI 4130/16 GOLD LINE is suitable for use with optional radial mount set which includes: mounting flange, propeller adaptor, securing collar and screws. With its high torque characteristics, this motor is capable of turning large propellers with a high level of efficiency. This motor is suitable for large sailplanes weighing up to 6000g and sports aerobatic models up to 4500g.
Specification
| No. of cells | 16 – 24 Nicd/Nimh, 5 – 8 Li-Poly |
| RPM/V | 385 RMP/V |
| Max. efficiency | 88% |
| Max. efficiency current | 18 – 40 A (>84%) |
| No load current / 10 V | 1.3 A |
| Current capacity | 60 A/60 s |
| Internal Resistance | 63 mohm |

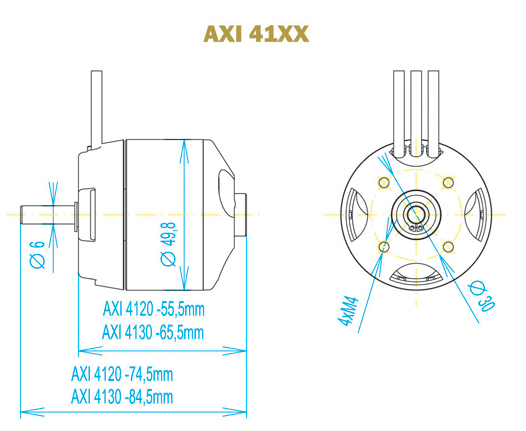

| Dimensions (diameter x length) | 49.8×65.5 mm |
| Shaft diameter | 6 mm |
| Weight with cables | 409 g |
Check out:
AXI 41XX Radial Mount
