Description

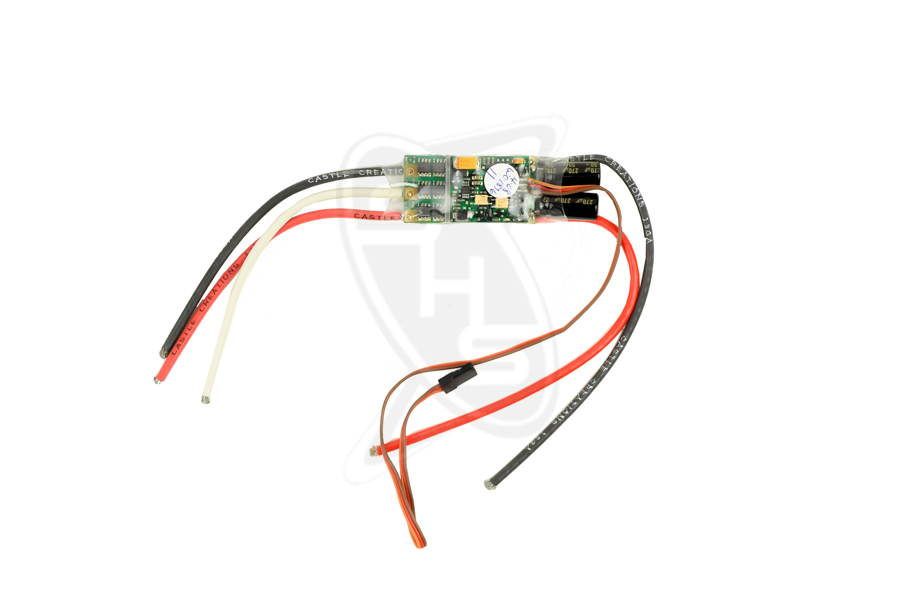

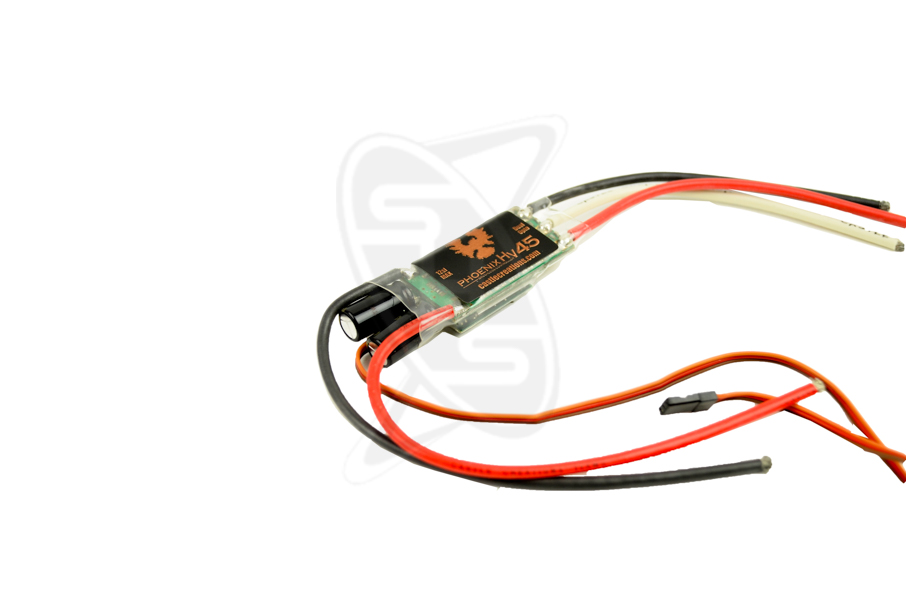

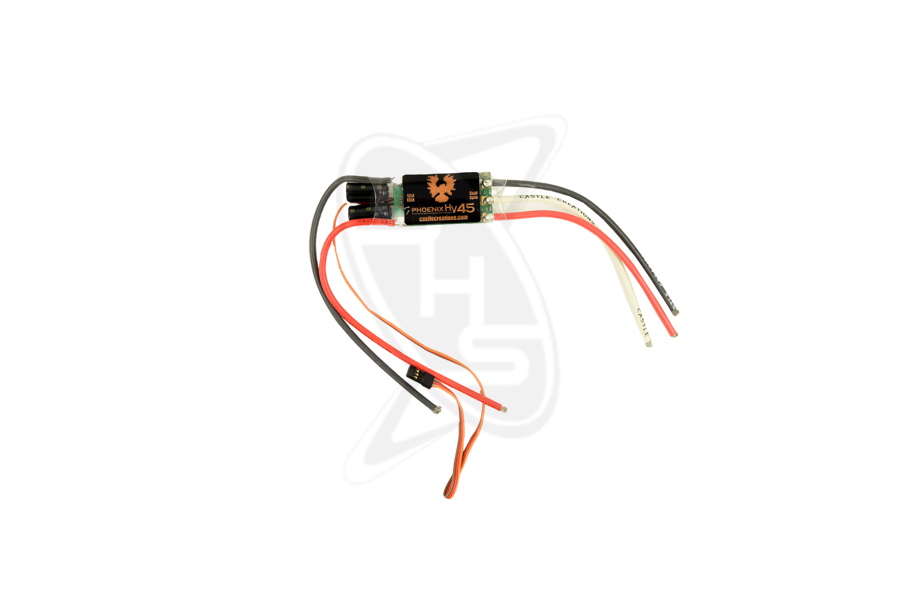

This is the Phoenix HV-45 brushless motor controller from Castle Creations! The Phoenix HV-45 brings the awesome power of high voltage systems within the reach of almost any modeler. Don't let the amp rating fool you here - 45 amps and 50 volts adds up to over 2,000 watts of power! The Phoenix HV-45's compact size and light weight make high voltage systems a realistic possibility for even small field aircraft and small to medium sized helicopters. Use the Phoenix HV-45 in your next .40 size electric conversion and marvel at the extra power and runtime that high voltage systems are known for.
Features
- Safe "Power On"
- Microprocessor Controlled
- Tough surface mount construction
- Audible Arming Signal
- Auto Motor cut-off with reset
- Low torque "Soft Start": protects gear boxes and belt drives from shock
- Smooth reverse exponential throttle
- Self-calibrating endpoints: maximizes usable stick travel
- Auto shut-down when signal is lost
- Simple setup: no complicated switches or wiring
Specifications:
Volts w/BEC: No BEC
Volts NO BEC: 50 max
Lipo Cells w/BEC: No BEC
Lipo Cells NO BEC: 12S max
NiCad or NiMh Cells w/BEC: No BEC
NiCad or NiMh Cells NO BEC: 36 max
Continuous: 45 amps
Switching Rate: Programmable (13, 26, or 52KHz)
Resistance: 0.003 ohms
Brake: Programmable
Reversible: Yes - change any two wires
Low Voltage Cut-off: Programmable
Size: 1.05 x 2.6 x 0.5"
Weight(w/wires): 1.9 oz (59g)
Connector Type: Universal
