Description

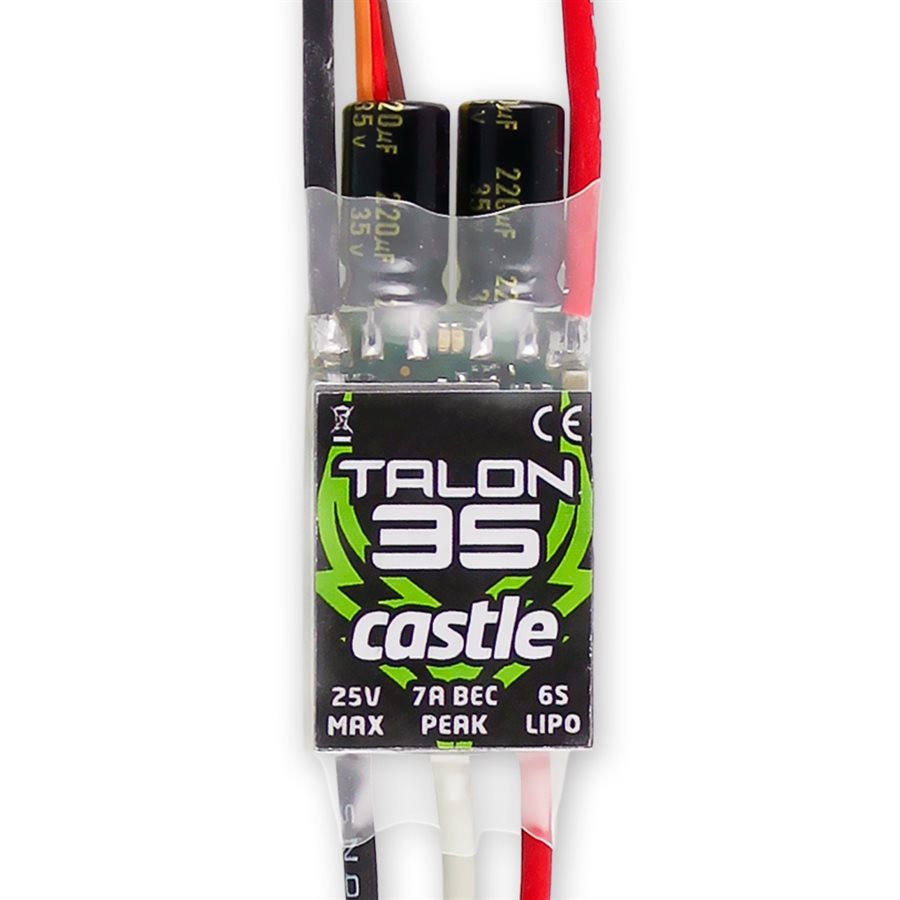

CASTLE CREATION Talon 35A ESC, 6S/25V with 7A BEC
LITTLE PACKAGE, BIG BEC!
Talon 35 can take on the most extreme maneuvers while keeping it's cool, and is intended for use in 450 Heli setups running up to 6S, or .10 to .20 fixed wing applications pulling up to 35 amps. It boasts a 7 amp peak/5 amp continuous BEC, keeping even the most draining servos at ease. Talon 35 also offers Castle's industry-leading helicopter functions, not to mention easy programming using the Castle Link USB adapter. The compact layout and thin profile make mounting Talon 35 simple and stress-free in any setup.
| Technical Specs | |
|---|---|
| Input Voltage Range: | MIN: 2S LiPo MAX: 6S LiPo |
| Max Continuous Amperage at full throttle: | 35 amps* |
| Max Voltage: | N/A |
| BEC Voltage: | 5.5 volts |
| BEC Output: | 7 amp peak** 5 amp continuous (always check servo draw prior to first flight) |
| Size: | Width: 0.88" (22.4mm) Length: 1.93" (49mm) Depth: 0.33" (8.4mm) |
| Weight: | 0.98 oz. (27.8g) with wires 0.42 oz (12g) without wires |
| Connectors: | N/A |
| Items Needed for Operation: |
|
| Product Use Statements: | N/A |
| Application Guidelines: | N/A |
| Programmability: | Fully programmable Castle feature set using Castle Link USB adapter and freely downloadable Castle Link Windows software. |
| Telemetry Link Capable: | Yes, except Battery Current |
| Tech Notes: | N/A |
