CASTLE CREATIONS CC BEC 2.0 Waterproof Voltage Regulator

Description

CASTLE CREATIONS CC BEC 2.0 Waterproof Voltage Regulator

From the trusted manufacturer of BECs comes the next generation of voltage regulators. Designed and assembled in the USA, Castle Creations’ CC BEC 2.0 gives users higher voltage ranges in two unique packages. For pilots there is a smaller, lightweight (0.7 oz.) design capable of 14 amps peak, perfect for sport flying, helicopters, and UAVs. Racers, crawlers, and other splashers can now integrate a 15 amp peak power regulator in a waterproof (WP), CNC machined, aluminum case. Both versions handle up to an impressive 14S without brake enabled or 12S with brake.

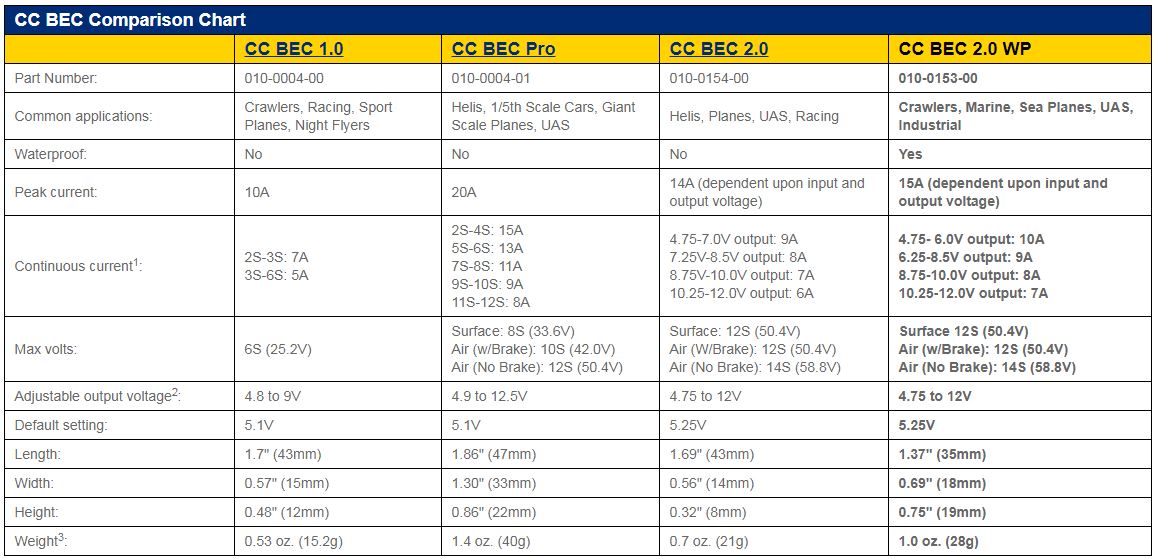

Specifications

Common applications: Crawlers, Marine, Sea Planes, UAS, Industrial

Waterproof:Yes

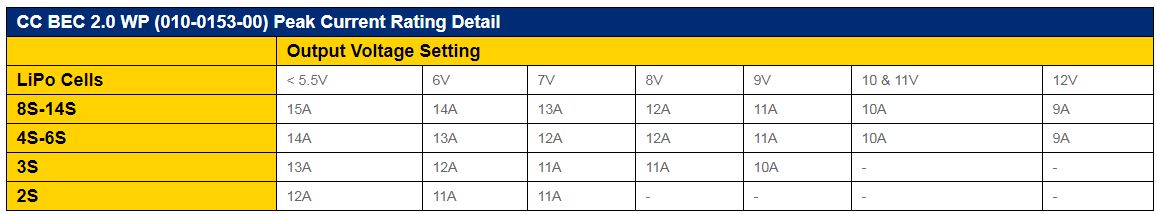

Peak current:15A (dependent upon input and output voltage)

Continuous current:

4.75- 6.0V output: 10A
6.25-8.5V output: 9A
8.75-10.0V output: 8A
10.25-12.0V output: 7A

Max volts:

Surface 12S (50.4V)
Air (w/Brake): 12S (50.4V)
Air (No Brake): 14S (58.8V)

Adjustable output voltage: 4.75 to 12V

Default setting: 5.25V

Length:35mm

Width:18mm

Height: 19mm

Weight: 28g
