Description

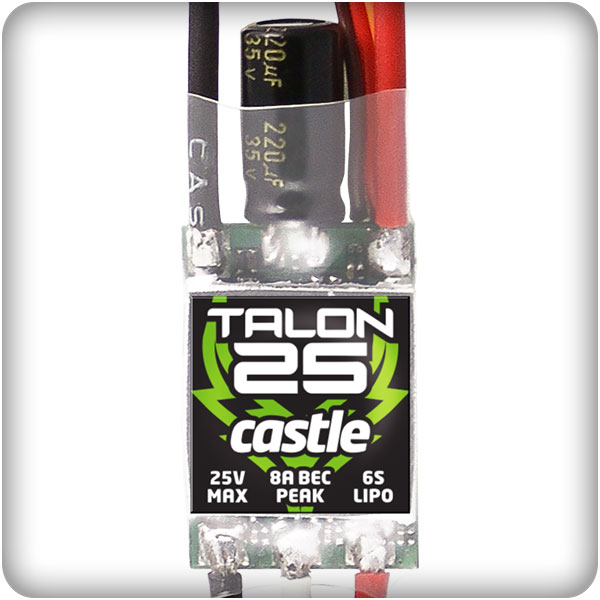

Talon 25: Compact and cool.
This compact controller can keep it’s cool even during the most extreme 3D maneuvers. Castle Creations Talon 25 is intended for use in most 400-size helicopter setups running up to 6S LiPo or your favorite 3D foamie that pulls up to 25 amps. Despite it’s size, it boasts an impressive 8 amp peak/3 amp continuous BEC, keeping even the most draining servos at ease. Talon 25 also offers Castle’s industry-leading helicopter functions, not to mention easy programming using the Castle Link USB adapter (optional). Talon 25 tips the scales at a mere 18 grams!
Specifications:
-
Input voltage MIN: 2S LiPo
-
MAX: 6S LiPo
-
Max continuous amperage at full throttle: 25 amps
-
BEC voltage (voltage regulator for powering radio and servos): 5.5 volts
-
BEC output 8 amp peak, 3 amp continuous (always check servo draw prior to first flight)
-
Dimensions Width: 0.72″ (18.2mm)
-
Length: 1.72″ (43.7mm)
-
Depth: 0.32″ (8.1mm)
-
Weight (with wires): 0.63 oz. (17.9g)
-
Weight (without wires): 0.28 oz (7.9g)
-
Items needed for operation or installation: Battery connector and motor connectors sold separately
-
Programmability: Fully programmable Castle feature set using Castle Link USB adapter (optional) and freely downloadable Castle Link Windows software.
