Description

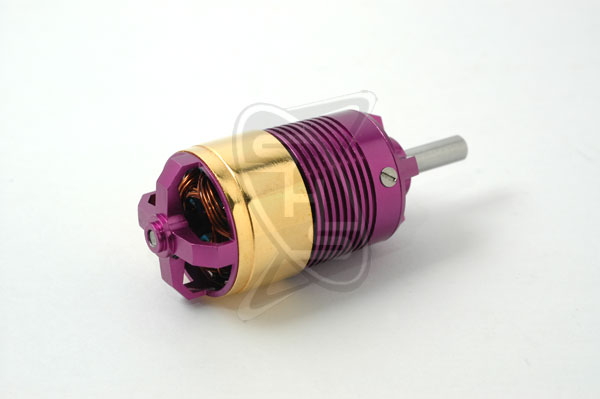

The Cyclon Elite Mini Punch Brushless Motor is designed for powering gliders (up to 2.5Kg) and airplanes. It can be used on 3D planes less than 1Kg or standard planes up to 1.5Kg (not constantly on full power). The motor range employs the NFS Principle (Noro Fabrice System) in the manufacturing process and allows the motor attain considerable power for very low weight. This Cyclon Motor possesses a record power to weight ratio, as it can develop 300W continuous power at the weight of only 78 g.
Characteristics of motor using timing of 4-15 °:
• Power with 10 cells : 160 W continuous , 200 W peak (30 seconds)
• Efficiency : 85 %, Timing 4 °
• Resistance : 0.029 Ohm total
• KV = 1451 rpm/V (after gearbox)
• Io = 2.2 A ( 6v)
• Dimensions : Diameter 27 mm , Length 50 mm
• Weight : 78g
